Fuse link VVC 24kV/80A 004255014 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004255014
- Description:
- * VVC 24kV/80A
- Class name:
- Fuse link
- Rated current (A):
- 80
- Type:
- VVC
- Rated AC voltage (V):
- 24000
- Indicator:
- striker 50N
- Breaking capacity AC (kA):
- 63
Documents
Logistic Data
Product
- Customs tariff
- 85351000
- logis_net_width
- 70 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895244547
- Basic packaging weight
- 3.9 kg
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895244554
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 60
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 80A

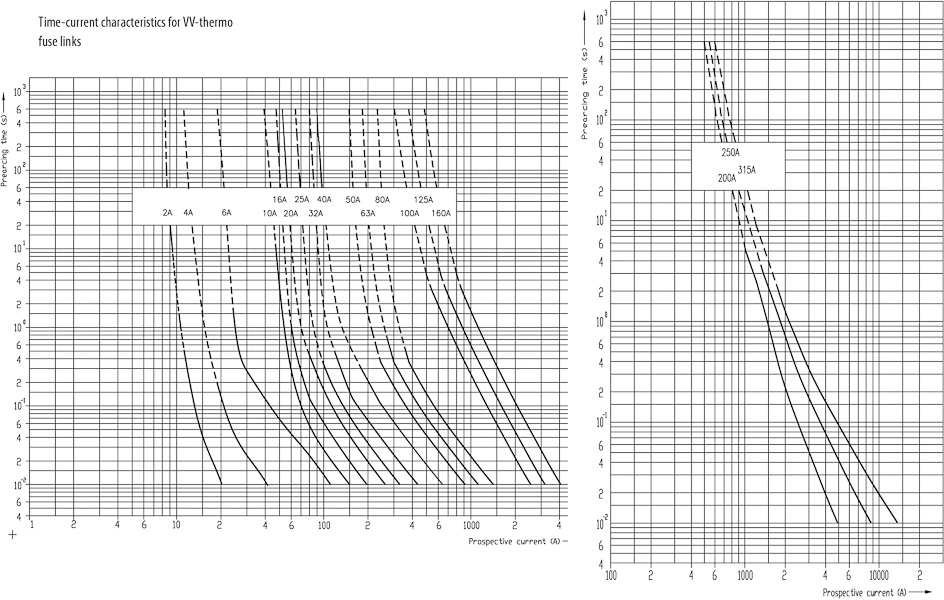

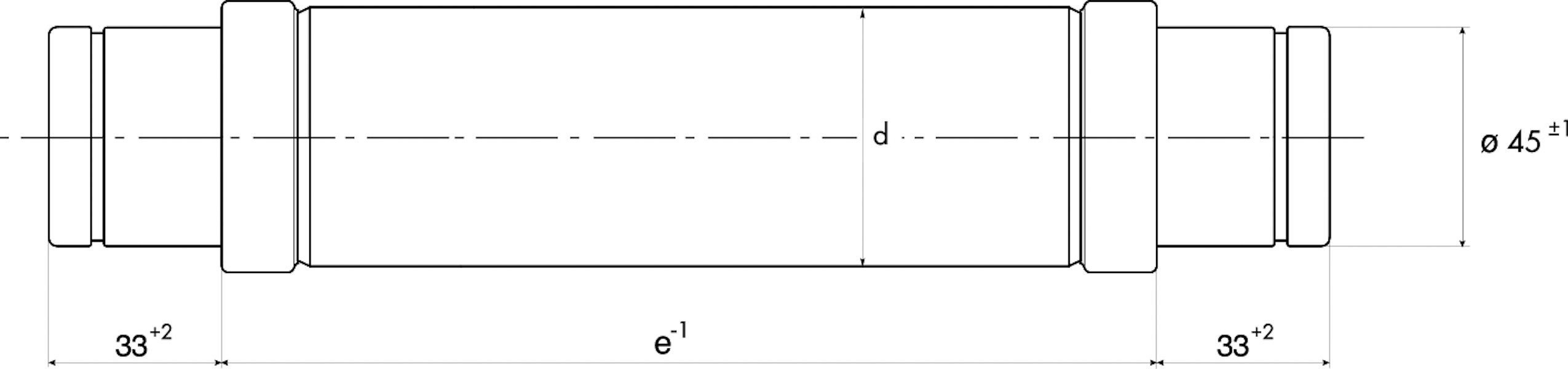

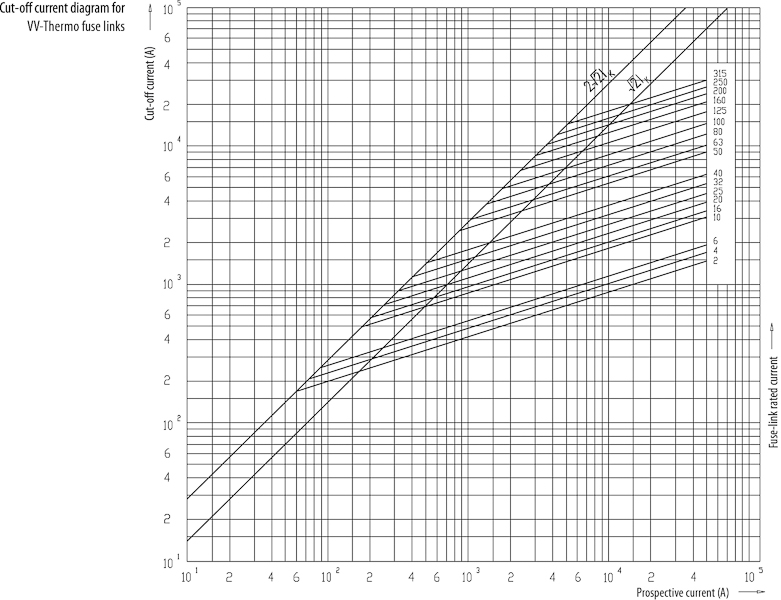

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
* VVC 24kV/80A
