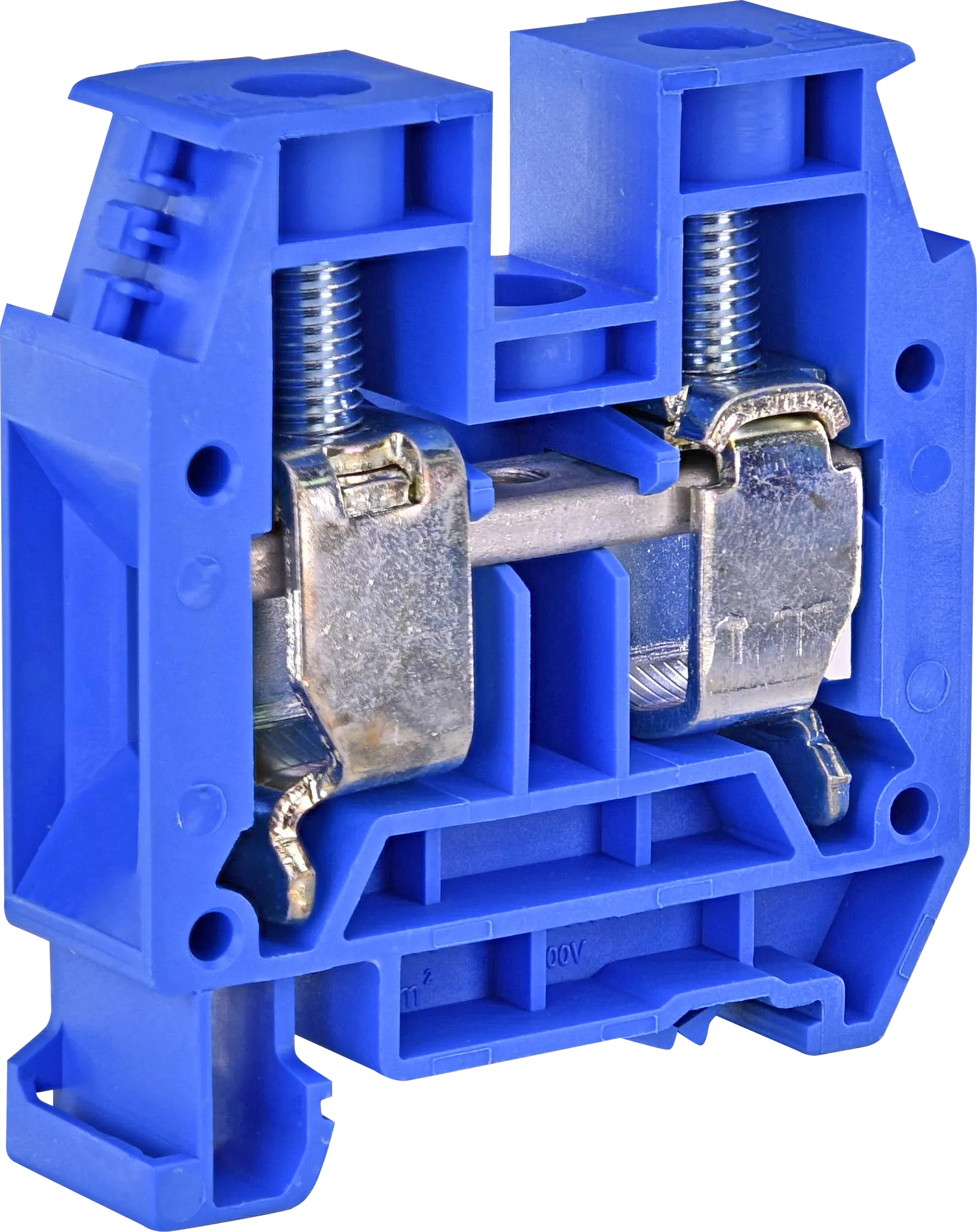

Neutral terminal ESC-CBC.35B 003903049
Specifications
- ETI Code:
- 003903049
- Description:
- ESC-CBC.35B
- Class name:
- Neutral terminal
- Mounting:
- DIN rail (top hat rail) 35 mm
- Level:
- Single
- Rated voltage (V):
- 1000
- Type:
- ES Screw Type Terminal Blocks
- Rated impulse withstand voltage Uimp (kV):
- 12 kV
- Color:
- Blue
- Rated cross section:
- 35
- Max current with rated cross-section (mm²):
- 101
- Max. current with max. cross-section (mm²):
- 160
- Connectable conductor cross section solid-core (mm²):
- 2,5-50
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895860969
- Net weight of the product
- 58 g
- Customs tariff
- 85369010
- logis_net_width
- 16 mm
- logis_net_height
- 56 mm
- logis_net_depth
- 62 mm
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895788430
- Transport packaging weight
- 2.98 kg
- Pallet quantity
- 7800
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 2.5…50
- Connectable conductor cross section fine-strand with cable end sleeve
- 2.5…35
- Connectable conductor cross section solid-core
- 2.5…50
- Connectable conductor cross section multi-wired
- 2.5…50
- Rated current In
- 160
- Rated voltage
- 1000
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Yes
- Colour
- Blue
