Introduction

Full range of accessories designed to enhance the functionality and application of both the MSP and MPE series motor protective circuit breakers.

ETI product serie

ETI presents the range of accessories designed to enhance the functionality and application of both the MSP and MPE series motor protective circuit breakers.

The MSP0 and MSP1 motor starter protectors can be complemented with various accessories for extended control and signaling capabilities.

Auxiliary Contacts:
- MSP-AS and MSP-PS11
- Both types feature 1NO+1NC contacts.
- Rated operational current for AC-15 at various voltages: 3A/230V, 1.5A/400V, 1A/500V.
- Designed for mounting on the right-hand side of the MSP.
- Each has a width of 9mm.

Short-Circuit Signalling Contacts:
- MSP-IZ2, MSP-IZ3 and MSP-IZ4
- These are also designed for mounting on the right-hand side of the MSP.
- Specific details include MSP-IZ2 (50), MSP-IZ3 (50), and MSP-IZ4 (100).

Shunt Releases:
- MSP-TA1 and MSP-TA2.
- These operate within a range of 0.7-1.1 times the rated voltage (Un).
- Mounted on the left-hand side of the MSP.
- Each has a width of 18mm.

Undervoltage Releases:
- MSP-A 230, MSP-A 24, and MSP-U 240 .
- Available for various AC and DC voltages: 230 VAC (220-230V 50Hz, 154-253 VAC), 24 VAC (24V 50Hz, 24-60V DC, 16.8-26.4 VAC, 16.8-66VDC), and 240 V 50Hz (204-264 VAC).
- For keeping, the operation range is 0.85-1.1Un, and the tripping voltage is 0.35-0.7 Un.
- Mounted on the left-hand side of the MSP.
- Each has a width of 18mm.

Connection Terminals:
- Includes busbar connections for linking 2, 3, or 4 MSPs.
- Also offers 3-phase line side terminals, with or without combination with MSP-IZ contacts.

The MPE series circuit breakers also offer a comprehensive range of accessories for diverse applications, including control, signaling, and enhanced protection.

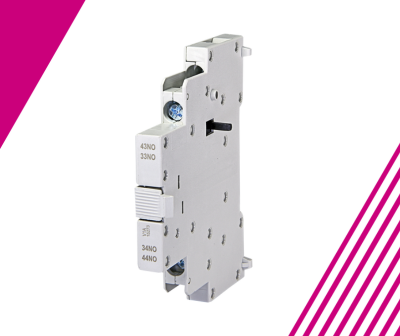

Auxiliary Contact Blocks:
- Front mountable (ACBFE-11, ACBFE-20): These have 1NO+1NC contacts. They are designed so that the MPE width remains unchanged when installed.
- Left side mountable (ACBSE-11, ACBSE-20): ACBSE-11 provides 1NO+1NC, while ACBSE-20 provides 2NO. These can be combined with front mountable auxiliary contact blocks.

Trip Indicating Contact Block:
- TSBE: Provides 1NO + alarms and 1NC for each circuit. It offers separate tripped and short-circuit indication. It is mounted on the left side and allows for mounting with lateral auxiliary contact blocks.

Shunt Release:
- SRMPE-Z20: Operates with actuating voltages of 200-240V AC. The pick-up voltage is 0.7 times the rated voltage (Ue). It is mounted on the right side.

Undervoltage Release:
- URMPE-N for 230-240V AC and URMPE-U for 400-415V AC. These are mounted on the right side.

Scale Cover:
- SCMPE.

Push-in-Lugs:
- PLMPE.

Insulated Enclosures (IP55):
- MPEE55G and MLPEE55G, with "E" variants MPEE55G-E and MLPEE55G-E.
- Available with black/grey rotary handles. These include an integrated PE(N) terminal, can be locked in the OFF position with 3 padlocks, and have two M25 metric cable entry knockouts at the top and bottom.
- Also available with red/yellow rotary handles. These are suitable for use as Emergency-Stop switches according to IEC/EN 60204, and also feature an integrated PE(N) terminal, lockability in the OFF position with 3 padlocks, and two M25 metric cable entry knockouts.

Neutral Terminal:
- NL-MPEE: Designed for the connection of a 5th conductor.

Flush Mounting Enclosures (IP55):
- FMEE55 (black) and FMEE55-E (red/yellow).
- Designed for MPE mounting on a panel door. They feature a moulded plastic front plate with a rotary operating mechanism, are lockable in the OFF position, and allow for the installation of accessories like ACBFE-11, ACBSE-11/ACBSE-20, URMPE/SRMPE, and signal lamps.

Indicator Lights:
- Available in red (PLE230, PLE400), green (PLE230G, PLE400G), and white (PLE230W, PLE400W).
- Voltage options include 210-230V and 400-560V.

Door Coupling Rotary Handle (IP55):
- RMMPE130 and RMMPE330 (black/grey).
- RMMPE130E and RMMPE330E (red/yellow).
- Features an extension shaft (lengths 130-155mm or 330-355mm, cuttable to a minimum of 80mm).
- Supports panel door thickness of 1 to 3.5mm.
- Suitable for use as a main switch (IEC/EN60204), indicating ON/OFF/Tripped positions.
- Can be locked in the OFF position with 3 padlocks, and the MPE can also be used when turned 90 degrees.

Circuit Breaker-Contactor Link Module:
- ECCMPE07 (for CE07) and ECCMPE25(for CEM9…25 contactors).
- Provides electrical and mechanical linking between the MPE25 motor protective circuit breaker and a contactor.
- Note: The ECCMPE25 is specifically for contactors with AC coil only.
