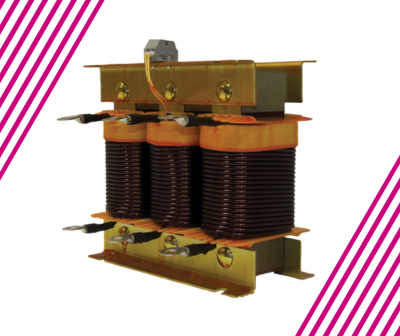

Detuning reactors

• Low Loss Magnetic Plates: Constructed with low loss magnetic plates, ensuring high efficiency and minimal energy loss.
• Class F Insulation: Made with permanent regime class F (155°C) copper conductors, providing excellent thermal endurance.
• Thermal Protection Relay: Equipped with a thermal protection relay to prevent overheating.
• Ventilation Design: The windings are separated to enhance ventilation and improve thermal dissipation.
• Standard Detuning Factors: Available in 7% and 14% detuning factors, with resonance frequencies of 189 Hz and 134 Hz for 50 Hz networks.
• Compliance Standards: The filters meet the IEC-60289 and IEC-076 standards.
• Overload Capacity: Designed with a permissible overload capacity of 1.07 x In (current).
• Linearity Inductance: The linearity of inductance is at 1.60 x In.
• Proof Stress: The filters have a proof stress of 4KV.
• Protection Degree: The filters have a protection degree of IP00.

The HFL series filters come with several key technical specifications:

• Tolerance "L": 3%.
• Heat Insulation: Filters are designed with heat insulation to withstand high temperatures.
• Room Temperature: Operable at a room temperature of 45°C.
• Temperature Class: Designed with F (155°C) thermal class.
•  Maximum Winding Temperature: The maximum winding temperature should not exceed 90°C.
• Detuning Factors: Available at 7% and 14%.
• Resonance Frequencies: 189 Hz for 7% detuning and 134 Hz for 14% detuning, with a 50 Hz network.
• Conductor Material: Available with both copper (Cu) and aluminum (Al) conductors.
• Capacitor Compatibility: Designed for use with LPC capacitors.

The HFL series includes various models with different reactive power ratings and conductor materials:

•  HFL 7/x Cu: Copper conductor filters with a 7% detuning factor
  • .Available in ratings from 5 kVAr to 100 kVAr.
• HFL 14/x Cu: Copper conductor filters with a 14% detuning factor.
  • Available in ratings from 5 kVAr to 50 kVAr.
• HFL 7/x Al: Aluminum conductor filters with a 7% detuning factor.
  • Available in ratings from 20 kVAr to 50 kVAr.
• HFL 14/x Al: Aluminum conductor filters with a 14% detuning factor.
  • Available in ratings from 20 kVAr to 50 kVAr.

Note: The 'x' in the product type represents the reactive power rating of the filter in kVAr.

The selection of the correct filter is based on several factors such as the type of load, the level of harmonic distortion, and the required compensation. The provided tables in the sources can be used as a reference for selecting the appropriate filter.

• 7% detuning filters are generally used in networks with a high presence of the 5th harmonic and higher.
• 14% detuning filters are suitable for networks with a high presence of the 3rd harmonic.

• Filters should be installed in series with the capacitors to create a tuned circuit.
• Ensure proper ventilation around the filters to prevent overheating.
• Refer to the mechanical dimension charts for proper mounting and installation.
