Introduction

Modular energy counters are essential devices for accurately measuring and monitoring electrical energy consumption in various applications. They provide precise measurements of energy usage, enabling businesses, utilities, and individuals to track consumption, optimize energy efficiency, and manage costs effectively. These compact, DIN-rail mounted meters seamlessly integrate into electrical systems, providing real-time data on energy consumption.

ETI product series

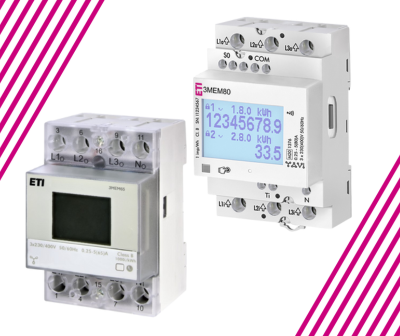

The ETIMETER series offers a comprehensive range of modular energy counters designed to meet diverse application requirements, providing accurate and reliable energy consumption measurements.

The 3MEM80 series caters to applications requiring higher current capacity, such as electric vehicle supply equipment (EVSE). It is designed to withstand higher operating temperatures, making it suitable for demanding environments.

Key features of the 3MEM80 Series:

EVSE Ready: Designed specifically for EV charging stations with a high ambient operational temperature of 70°C.
Comprehensive Measurements: Measures active, reactive, and apparent energy, as well as voltage, current, power factor, and other essential parameters.
Communication Interface: Equipped with an RS485 (Modbus) communication port for data integration and remote monitoring.
Tariff Input: Supports tariff input for measuring energy consumption under different tariff structures.
DIN-Rail Mounting: Compact design for easy installation on DIN rails.

The 3MEM65 series offers flexibility with various communication and measurement options.

Key features of the 3MEM65 Series:

Multiple Communication Options: Available with RS485 (Modbus), M-bus communication, tariff input, and pulse output options.
Versatile Applications: Suitable for residential, industrial, and utility applications.
Comprehensive Measurements: Measures a wide range of parameters, including active, reactive, and apparent power and energy, voltage, current, frequency, power factor, THD, and more.
Tariff Input: Supports tariff input for measuring energy consumption under different tariff structures.
Pulse Output: Option for pulse output to interface with external devices.
DIN-Rail Mounting: Compact design for easy installation on DIN rails.

The 3MEM40-EVRS is specifically designed for electric vehicle charging stations, adhering to the stringent requirements of PTB, VDE, and OCMF.

Key features of the 3MEM40-EVRS:

EV Charger Compatibility: Designed for use in three-phase and single-phase electric charger stations with a high ambient operating temperature of 70°C.
Single-Phase Connection: Can be connected on a single phase (L3).
Comprehensive Measurements: Measures active, reactive, and apparent power and energy for each phase and total, voltage, current, frequency, power factor, THD, and more.
RS485 Communication: Includes RS485 communication for data integration and remote monitoring.
Backlit LCD Display: Features a two-row, backlit LCD display for clear visibility.
DIN-Rail Mounting: Compact design for easy installation on DIN rails.

The 1MEM40-BPO is a compact, single-phase energy meter designed for applications with lower current demands.

Key features of the 1MEM40-BPO:

Single-Phase Operation: Specifically designed for single-phase electrical networks.
Residential, Industrial, and Utility Applications: Suitable for a wide range of applications, including homes, businesses, and utilities.
Direct Metering: Measures energy directly in 2-wire networks.
Comprehensive Measurements: Measures active, reactive, and apparent power and energy, voltage, current, frequency, power factor, THD, and more.
Pulse Output: Includes a pulse output according to IEC 62053-31.
Backlit LCD Display: Features a custom backlit LCD display for clear visibility.
DIN-Rail Mounting: Compact design for easy installation on DIN rails.

Application

Modular energy counters are designed for versatility, catering to diverse needs across different sectors:

Residential Applications: In homes, modular energy counters allow homeowners to monitor their electricity usage, identify potential areas for energy savings, and manage their energy bills efficiently.
Industrial Environments: Industries rely on modular energy counters for precise energy monitoring to optimize processes, allocate energy costs accurately, and enhance overall energy efficiency.
Commercial Buildings: Modular energy counters are crucial for monitoring energy consumption in commercial buildings, enabling building managers to track usage, identify areas of inefficiency, and implement energy-saving measures.
Utility Companies: Electric utility companies use modular energy counters for billing purposes, load profiling, and grid management.

The core functionality of modular energy counters involves measuring voltage and current signals within the electrical network. Advanced built-in microprocessors calculate energy consumption and other essential electrical quantities from these measured signals. Modern modular energy counters often incorporate additional features:

Communication Interfaces: Many modular energy counters feature communication interfaces, such as RS485 (Modbus) or M-bus, enabling data transmission to energy management systems, building automation systems, or utility company databases.
Tariff Management: Some models support tariff management, allowing for the measurement and recording of energy consumption under different tariff structures, aiding in cost optimization.
Pulse Outputs: Modular energy counters may include pulse outputs, providing a means to interface with external devices, such as energy monitoring systems or data loggers.
LCD Displays: User-friendly LCD displays provide clear visualizations of energy consumption data, allowing for on-site monitoring and analysis.

Product site

Explore the dedicated product site for complete technical information, product variants, downloads, certifications, accessories, and application details. Everything you need to select, specify and use the product is available in one place

Visit the Product site
