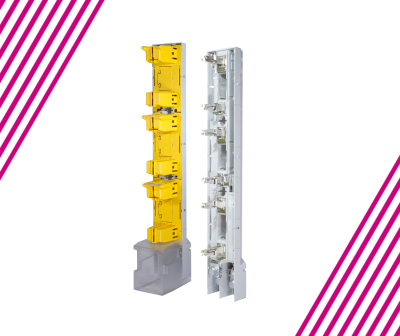

Fuse rails NH

The LV NV/NH fuse-rails are 3-pole bases of LV fuse-links, intended for busbar mounting. They comprise three single-pole connections in one unit. Each contact at an individual phase is connected to the phase on the busbar system. The other contacts are fitted with cable connecting terminals or are intended for the attachment of the following busbar system.

The LV NV/NH fuse-rails are manufactured in compliance with the DIN 43623 standard. They are mostly used for installation into cable distribution cabinets and power supply systems. They are available in sizes of 00/160 A to 3/630 A. Covers provide insulation protection for all live parts.

The LV NV/NH fuse-rails are mainly used for cable distribution and power supply systems. They are intended for insertion of LV fuse-links that are inserted and removed from the fuse-rails by means of a special handle.

The insulated supporting body is made of polyester reinforced with glass fibres. A silver-plated contact system, fitted with tinned extinction chambers, ensures low power dissipation, optimum thermal characteristics, and a high breaking capacity.

All live parts are protected against accidental contacts in conformity with BVG A2.

All the LV NV/NH fuse-rails are fitted with new, modern Delta contact systems allowing optimum pressure contact between the fuse cartridge and the LV NV/NH fuse-rails, resulting in an extremely low level of power dissipation and heating-up.

All standard insulated LV NV/NH fuse-rails are intended for general usage. Appropriate individual configurations can be designed upon request.

Advantages

• Upper or lower cable connection
• Optimum pull contact
• Simple installation
• Modular design

A detailed example of the VL00/100 EK fuse rail, highlighting its specific features and available options:

• Compatibility with Fuse Links: This fuse rail is intended for use with fuse links of size 000 (00C) and 00.
• The fuse-rail protects equipment in electrical circuits from overload and short circuit.
• Protection Features: The fuse rail incorporates a specially designed contact cover that enables safe manipulation of fuse links (insertion and removal) using a special handle.
• Application Areas: The VL00/100 EK fuse rail is suitable for use in transformer substations, distribution boards, public lighting cabinets, cable distribution cabinets, and various industrial settings.
• Mounting Options:  Rails can be mounted on 100mm busbar system directly, with additional adapters can be mounted also to 185mm busbar system. Mounting in vertical and horizontal position. can be mounted in both vertical and horizontal positions, offering flexibility in installation.
• Cable Terminal Options: The catalogue lists various cable terminal types (M8, BT00, OS00, P00, P002) with their respective specifications, including clamping cross-sections, screw types, and tightening torques.
• Additional Connections: The catalogue also lists additional connections for the VL00/100 EK fuse rail, such as bottom side connections and top side connections with specific connector drawings and suitability information.
• VL00/100 EK are in accordance with the following standards: IEC 60947-1, IEC 60947-3, IEC 60269-1, IEC 60269-2
