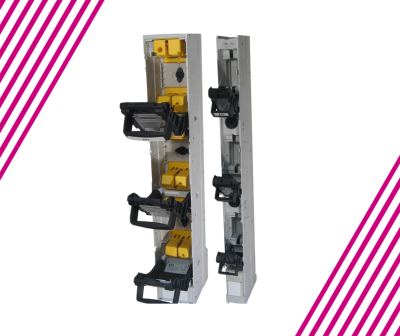

Strip type fuse disconnectors NH

Strip type fuse-switch-disconnectors are 3-pole bases of NV/NH fuse cartridges, intended for busbar mounting. They comprise three single-pole connections in one unit, with each contact at an individual phase connected to the phase on the busbar system. The other contacts are fitted with cable connecting terminals or intended for attachment of the following busbar system.

NV/NH Strip Type Fuse-Switch-Disconnectors Sizes 00, 1, 2, 3

• This series is available in sizes of 00/160 A to 3/630 A.
• The fuse rails are mostly used for installation into cable distribution cabinets and power supply systems in accordance with IEC/EN 61439-1.
• They have been tested in accordance with IEC/EN 60947-3.
• They are available for the sizes of fuse cartridges from 00 to 3, with both single-pole and 3-pole switching-on.
• All the standard Strip type fuse-switch-disconnectors shown in the catalogue are intended for general usage.
• Available in single-pole and 3-pole switching-in options.
• Can be attached directly to a busbar system or with side contacts for a busbar system.
•  All the Strip type fuse-switch-disconnectors are fitted with new, modern Delta contact systems, allowing optimum pressure contact between the fuse cartridge and the Strip type fuse-switch-disconnectors, resulting in an extremely low level of power dissipation and heating-up.

Strip Type Fuse-Switch Disconnectors Type SL00 EK

• The Strip type fuse-switch disconnector SL00/100 EK is a three-pole low-voltage switching device.
• It's intended for use with fuse-links size 000 (00C), 00.
• The fuse-rail protects equipment in electrical circuits from overload and short circuit.
• Special designed contact cover enables safe manipulation with fuse-links (insertion / pull out) with special handle.
• Applications: Transformer substation, Distribution boards, distribution panels, Public lightening cabinets, Cable distribution cabinets, Industry.
• Mounting: Rails can be mounted on 100mm busbar system directly, with additional adapters can be mounted also to 185mm busbar system. Mounting in vertical and horizontal position.
• Standards: In accordance with the following standards: IEC 60947-1,IEC 60947-3, IEC 60269-1, IEC 60269-2
