004641524

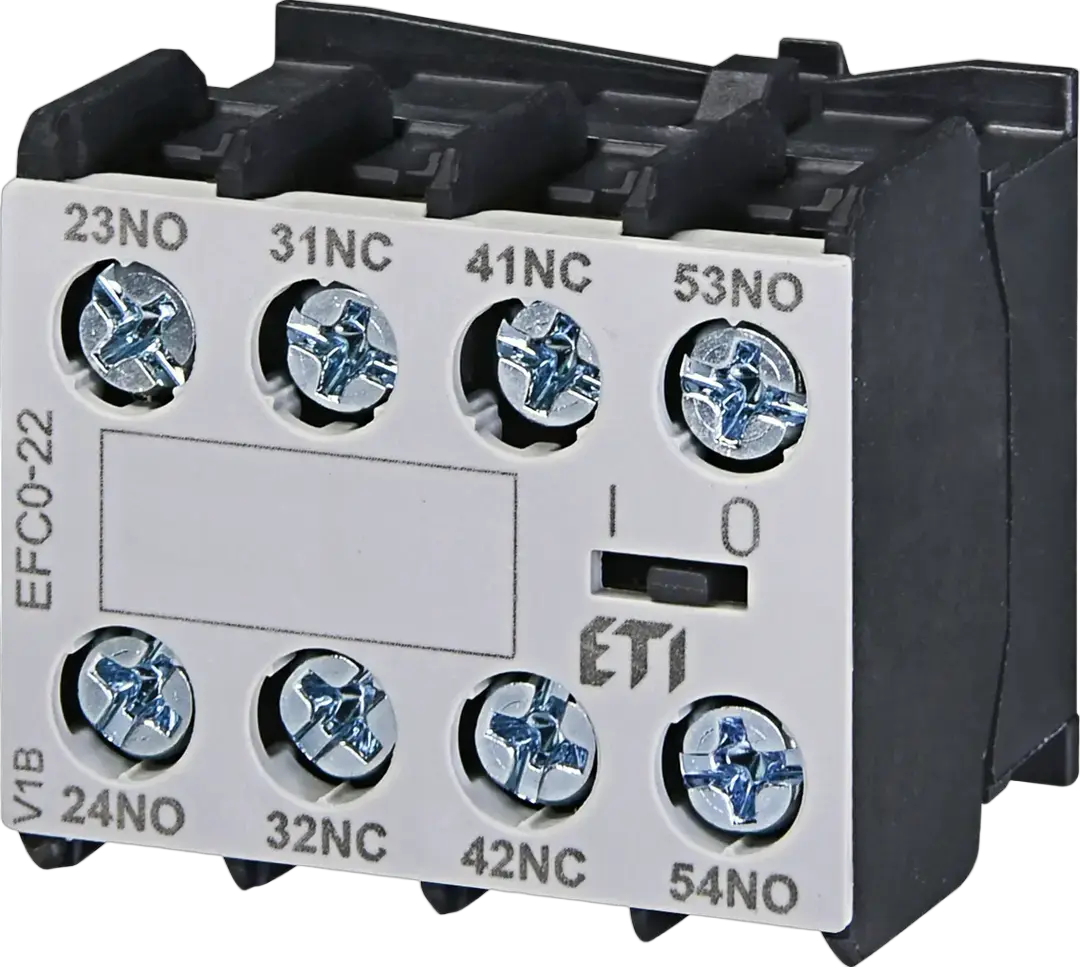

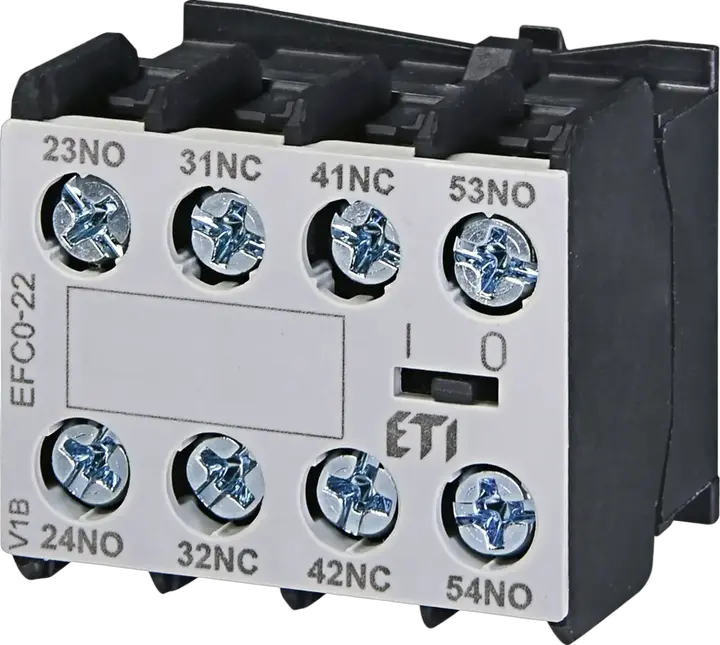

EFC0-22 Aux.contacts
- ETI Code:
- 004641524
- To use with:
- miniature and auxiliary contator CEC0 3 pole
- No. of NC contacts:
- 2
- No. of NO contacts:
- 2
- Function accessories:
- Auxiliary contact blocks
- Function:
- Auxiliary contact blocks
- Type of Installation:
- Contactor mounting
- Catalogue Group:
- Accessories CEC
6 Documents
21 Logistics
Product
- Net weight of the product
- 0.028 kg
- Net width
- 36.6 mm
- Net height
- 32 mm
- Net depth
- 32.14 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7890355553381
- Basic packaging weight
- 0.044 kg
- Basic Packaging Dimensions Height
- 37 mm
- Basic Packaging Dimensions Width
- 36 mm
- Basic Packaging Dimensions Depth
- 42 mm
- Basic packaging volume
- 0.056 dm³
Transport Packaging
- Transport packaging quantity
- 18 pcs
- EAN code for a transport packaging
- 17890355553388
- Transport packaging weight
- 0.844 kg
- Transport Packaging Dimensions Height
- 77 mm
- Transport Packaging Dimensions Width
- 119 mm
- Transport Packaging Dimensions Depth
- 142 mm
- Transport packaging volume
- 1.301 dm³
- Pallet quantity
- 13,824 pcs
- Customs tariff
- 85365080
5 ETIM
- Number of contacts as normally closed contact
- 2
- Mounting method
- Front fastening
- Rated operation current Ie at AC-15, 230 V
- 10 A
- Number of contacts as normally open contact
- 2
- Type of electric connection
- Screw connection
ETIM Classification – Version 9.0
