004641161

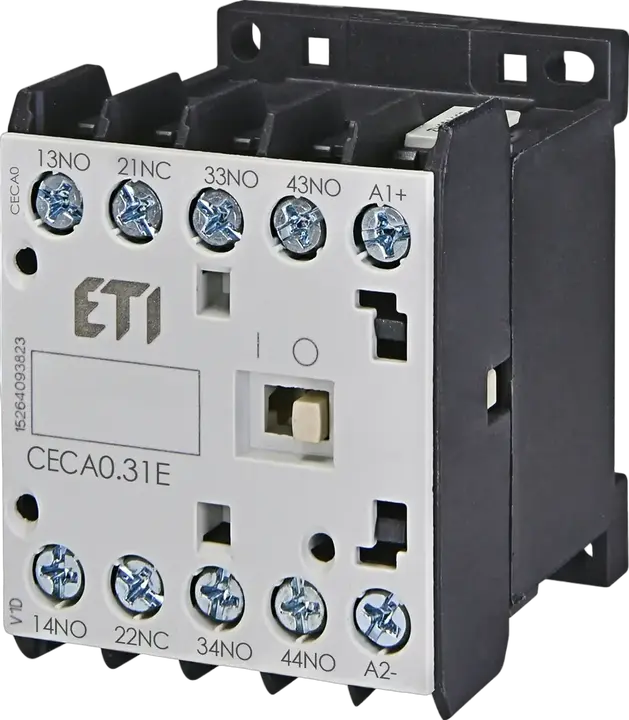

CECA0.31-24V-50/60Hz Aux.contactor
- ETI Code:
- 004641161
- Number of poles:
- 4
- Rated operation current Ie at AC1:
- 10 A
- Rated operational voltage (AC):
- 230 V
- Rated control circuit voltage Uc (AC):
- 24 V
- Rated Frequency:
- 50/60 Hz
- No. of aux NO contacts:
- 3
- No. of aux NC contacts:
- 1
- Function:
- Auxiliary contactors
- Catalogue Group:
- Accessories CEC
5 Documents
18 Logistics
Product
- Net weight of the product
- 0.188 kg
- Net width
- 45.5 mm
- Net height
- 58 mm
- Net depth
- 52.02 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895535621
- Basic packaging weight
- 0.1 kg
- Basic packaging volume
- 0.3 dm³
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355552797
- Transport packaging weight
- 0.194 kg
- Transport Packaging Dimensions Height
- 61 mm
- Transport Packaging Dimensions Width
- 48.5 mm
- Transport Packaging Dimensions Depth
- 55 mm
- Transport packaging volume
- 0.163 dm³
- Pallet quantity
- 4,000 pcs
- Customs tariff
- 85364900
9 ETIM
- Rated operation current Ie, 400 V
- 10 A
- Voltage type for actuating
- AC
- Connection type auxiliary circuit
- Screw connection
- Number of auxiliary contacts as normally open contact
- 3
- Number of auxiliary contacts as normally closed contact
- 1
- Rated control supply voltage AC 60 Hz(Min)
- 24 V
- Rated control supply voltage AC 50 Hz(Min)
- 24 V
- Rated control supply voltage AC 60 Hz(Max)
- 24 V
- Rated control supply voltage AC 50 Hz(Max)
- 24 V
ETIM Classification – Version 9.0
