004641173

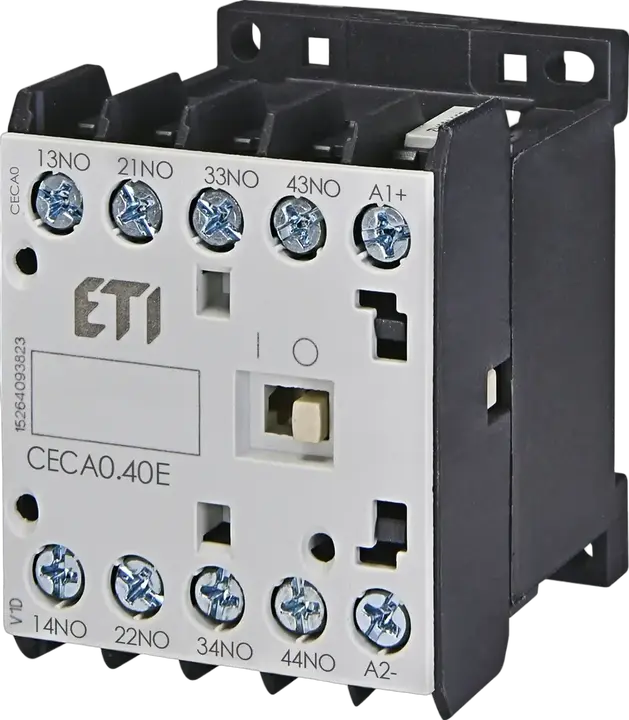

CECA0.40-220V-DC Aux.contactor
- ETI Code:
- 004641173
- Number of poles:
- 4
- DC rated control supply voltage Uc:
- 220 V
- Rated operation current Ie at AC1:
- 10 A
- Rated operational voltage (AC):
- 230 V
- Rated control circuit voltage Uc (DC):
- 220 V
- No. of aux NO contacts:
- 4
- Function:
- Auxiliary contactors
- Catalogue Group:
- Accessories CEC
5 Documents
14 Logistics
Product
- Net weight of the product
- 0.218 kg
- Net width
- 45.5 mm
- Net height
- 58 mm
- Net depth
- 52.02 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355552889
- Transport packaging weight
- 0.229 kg
- Transport Packaging Dimensions Height
- 61 mm
- Transport Packaging Dimensions Width
- 48.5 mm
- Transport Packaging Dimensions Depth
- 55 mm
- Transport packaging volume
- 0.163 dm³
- Pallet quantity
- 3,478 pcs
- Customs tariff
- 85364900
6 ETIM
- Rated operation current Ie, 400 V
- 10 A
- Voltage type for actuating
- DC
- Connection type auxiliary circuit
- Screw connection
- Number of auxiliary contacts as normally open contact
- 4
- Rated control supply voltage DC(Min)
- 220 V
- Rated control supply voltage DC(Max)
- 220 V
ETIM Classification – Version 9.0
