004641206

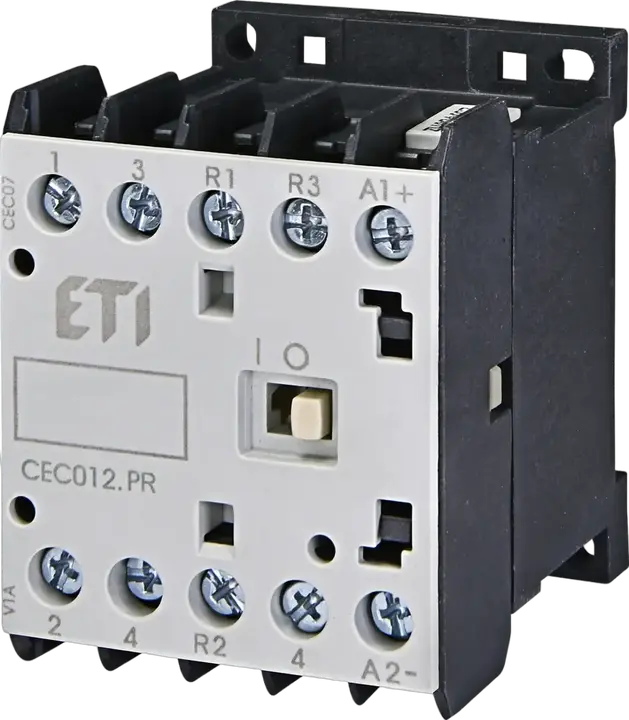

CEC012.PR-230V-50/60Hz Miniature motor contactor
- ETI Code:
- 004641206
- Number of poles:
- 4
- Rated operation current Ie at AC1:
- 22 A
- Rated operation current Ie at AC3, 400V:
- 12 A
- Rated operational voltage (AC):
- 690 V
- Rated control circuit voltage Uc (AC):
- 230 V
- No. of NO contacts:
- 2
- No. of NC contacts:
- 2
- Function:
- Miniature contactors
- Catalogue Group:
- Miniature contactor CEC
7 Documents
14 Logistics
Product
- Net weight of the product
- 0.18 kg
- Net width
- 45.5 mm
- Net height
- 58 mm
- Net depth
- 52.02 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355553152
- Transport packaging weight
- 0.194 kg
- Transport Packaging Dimensions Height
- 61 mm
- Transport Packaging Dimensions Width
- 48.5 mm
- Transport Packaging Dimensions Depth
- 55 mm
- Transport packaging volume
- 0.163 dm³
- Pallet quantity
- 4,000 pcs
- Customs tariff
- 85364900
11 ETIM
- Rated operation current Ie at AC-3, 400 V
- 13.7 A
- Number of normally closed contacts as main contact
- 2
- Voltage type for actuating
- AC
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 2
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
ETIM Classification – Version 9.0
