Miniature contactors are compact, electrically controlled switches used to control and protect electric motors and other electrical loads. They are specifically designed for applications requiring smaller size and lower power consumption compared to larger contactors.Auxiliary contactors, also known as auxiliary contact blocks, are typically used in conjunction with miniature contactors to provide additional control and signaling functions within a circuit.

004641610

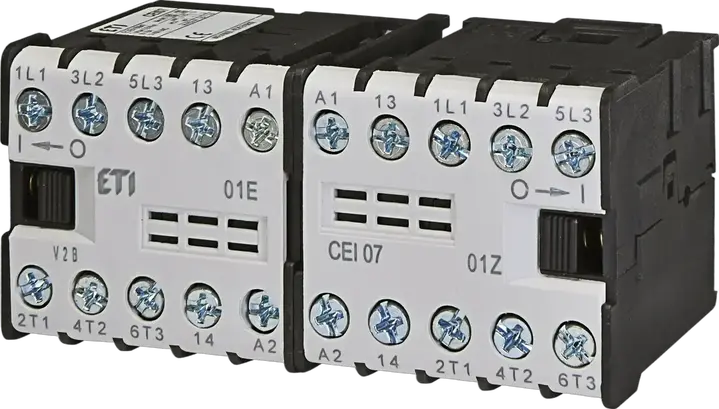

Image of CEI07.01-24V-50/60Hz

CEI07.01-24V-50/60Hz Min. mot. contactor - revers.

ETI Code:: 004641610
Number of poles:: 3
Rated operation current Ie at AC1:: 16 A
Rated operation current Ie at AC3, 400V:: 3.5 A
Rated operational voltage (AC):: 400 V
Rated control circuit voltage Uc (AC):: 24 V
No. of NO contacts:: 3
No. of aux NC contacts:: 1
Function:: Miniature contactors
Catalogue Group:: Miniature and auxiliary contactor CE, CAE, CE17

Accessories

Product

Net weight of the product: 0.25 kg
Net width: 91 mm
Net height: 42.3 mm
Net depth: 44 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 2 pcs
EAN code for a basic packaging: 7890355110515
Basic packaging weight: 0.462 kg
Basic Packaging Dimensions Height: 49 mm
Basic Packaging Dimensions Width: 95 mm
Basic Packaging Dimensions Depth: 99 mm
Basic packaging volume: 0.461 dm³

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 7909322485706
Transport packaging weight: 0.24 kg
Transport Packaging Dimensions Height: 49 mm
Transport Packaging Dimensions Width: 95 mm
Transport Packaging Dimensions Depth: 51 mm
Transport packaging volume: 0.237 dm³
Customs tariff: 85364900

Rated operation current Ie at AC-3, 400 V: 3.5 A
Voltage type for actuating: AC
Type of electrical connection of main circuit: Frame clamp
Number of normally open contacts as main contact: 3
Rated operation power at AC-3, 400 V: 1.5 kW
Number of auxiliary contacts as normally closed contact: 1
Rated operation current Ie at AC-1, 400 V: 16 A
Rated control supply voltage AC 60 Hz(Min): 24 V
Rated control supply voltage AC 50 Hz(Min): 24 V
Rated control supply voltage AC 60 Hz(Max): 24 V
Rated control supply voltage AC 50 Hz(Max): 24 V

ETIM Classification – Version 9.0
