004642414

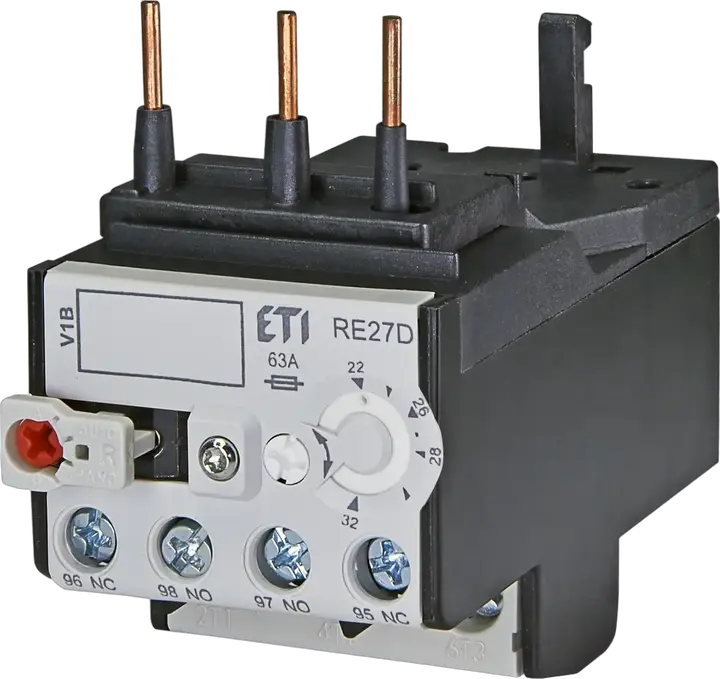

RE27D-32 Thermal overload relay
- ETI Code:
- 004642414
- To use with:
- CEM09…CEM25
- Type of Installation:
- Contactor mounting
- Function accessories:
- Overload relay
- No. of aux NC contacts:
- 1
- Current setting range:
- 22/32 A
- No. of aux NO contacts:
- 1
- Catalogue Group:
- Accessories CEM/CEAM
- Function:
- Overload relay
17 Logistics
Product
- Net weight of the product
- 0.15 kg
- Net width
- 45 mm
- Net height
- 71 mm
- Net depth
- 79.95 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7894171734405
- Basic packaging weight
- 0.151 kg
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355110263
- Transport packaging weight
- 0.165 kg
- Transport Packaging Dimensions Height
- 75 mm
- Transport Packaging Dimensions Width
- 90 mm
- Transport Packaging Dimensions Depth
- 50 mm
- Transport packaging volume
- 0.338 dm³
- Pallet quantity
- 5,333 pcs
- Customs tariff
- 85364900
7 ETIM
- Release class
- CLASS 10
- Mounting method
- Direct attachment/single positioning
- Type of electrical connection of main circuit
- Flat plug-in connection
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Adjustable current range(Min)
- 22 A
- Adjustable current range(Max)
- 32 A
ETIM Classification – Version 9.0
