004645421

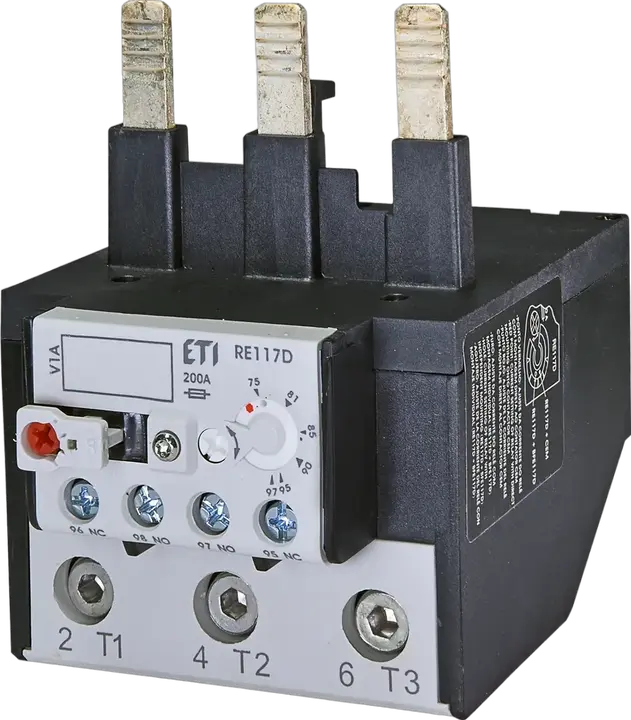

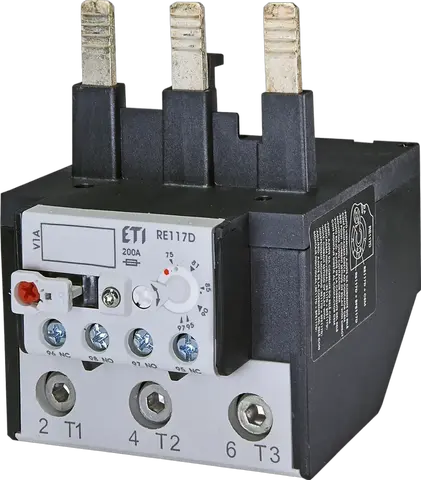

RE117.1D-97 Thermal overload relay
- ETI Code:
- 004645421
- To use with:

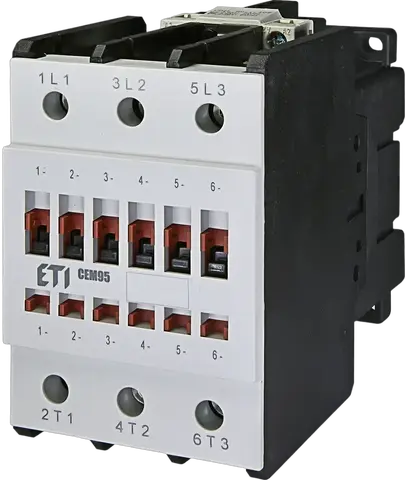

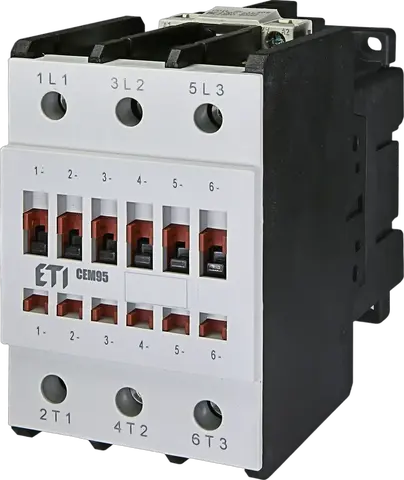

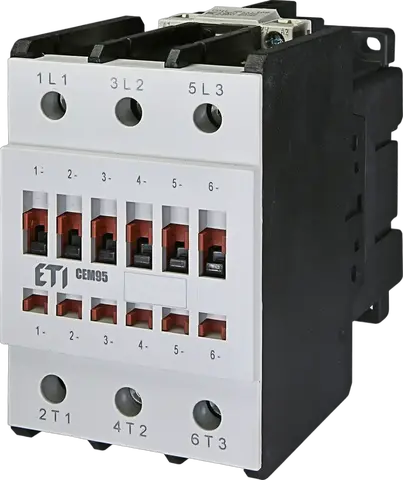

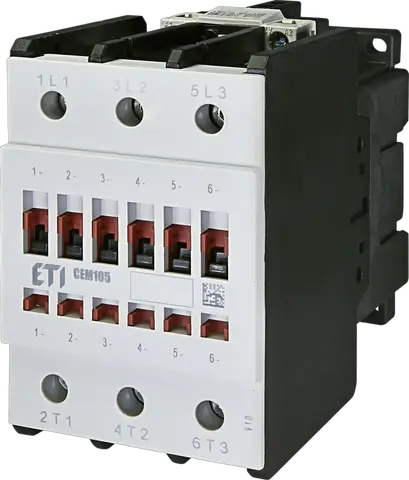

- CEM95...CEM105
- Type of Installation:
- Contactor mounting
- Function accessories:
- Overload relay
- No. of aux NC contacts:
- 1
- Current setting range:
- 75/97 A
- No. of aux NO contacts:
- 1
- Catalogue Group:
- Accessories CEM/CEAM
- Function:
- Overload relay
17 Logistics
Product
- Net weight of the product
- 0.52 kg
- Net width
- 75.1 mm
- Net height
- 99.5 mm
- Net depth
- 96.9 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7894171705177
- Basic packaging weight
- 0.536 kg
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355110331
- Transport packaging weight
- 0.7 kg
- Transport Packaging Dimensions Height
- 110 mm
- Transport Packaging Dimensions Width
- 120 mm
- Transport Packaging Dimensions Depth
- 85 mm
- Transport packaging volume
- 1.122 dm³
- Pallet quantity
- 1,538 pcs
- Customs tariff
- 85364900
7 ETIM
- Release class
- CLASS 10
- Mounting method
- Direct attachment
- Type of electrical connection of main circuit
- Flat plug-in connection
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Adjustable current range(Min)
- 75 A
- Adjustable current range(Max)
- 97 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
20 Tags
004645421Thermal overload relayRE117.1D-97ETICONMotor contactorsOverload relayOverload relayRE117.1DRE117.1DInternationalContactors ETICONMotor contactor CEM, overload relays and acessoriesOverload relaysCurrent setting range: 75 A/97 ANo. of aux NC contacts: 1Function: Overload relayFunction accessories: Overload relayNo. of aux NO contacts: 1Catalogue Group: Accessories CEM/CEAMThermal overload relay TOWAR Function accessories: Overload relay No. of aux NC contacts: 1 Current setting range: 75 A/97 A No. of aux NO contacts: 1 Catalogue Group: Accessories CEM/CEAM Function: Overload relay
