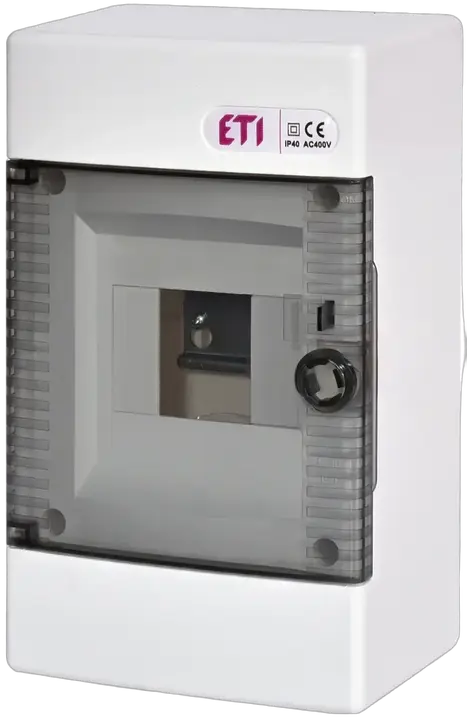

Distribution box ECT4PT 001100140

Specifications

ETI Code:
001100140
Description:
ECT4PT
Class name:
Distribution box
Mounting type:
Surface mounted
Rated voltage (V):
400
Rated current (A):
63
IP rating:
IP 40
Frame size (Nr. of rows):
1
No. of modules (total/per row):
4 / 4
Door (material, color):
Plastic, transparent
Enclosure base (material, color):
Plastic, white
Number of PE/N terminals (connections):
4 / 4
Glow wire test:
650

Product

EAN code for a single product
3838895456544
Net weight of the product
0.49 kg
Customs tariff
85381000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895876625
Basic packaging weight
0.49 kg
Basic packaging volume
3.54

Transport packaging

Transport packaging quantity
5
EAN code for a transport packaging
3838895876632
Transport packaging weight
2.95 kg
Transport packaging volume
17.7
Pallet quantity
280
Pallet volume
88.5
Classification
EC000214
Class name
Distribution box
Built-in depth
68
Colour
White
Cover model
Closed
Degree of protection (IP)
IP40
Depth
98
DIN-rail
Yes
EMC-version
Yes
Extension possible
No
Height
235
Material housing
Plastic
Mounting method
Surface mounting
Number of rows
1
RAL-number
9003
Transparent cover/door
Yes
Type of cover
Door
Width
143
Width in number of modular spacings
4
With mounting plate
No
ETIM Classification – Version 7.0

Documents

Images & Diagrams

001100140Distribution box, ECT4PTETIBOXDistribution boards DIDODIDO-ESurface mountedTransparent doorTransparent doorEnclosures, distribution boards, equipmentDistribution boards and enclosuresWall-mounted plastic boards IP40ECT4PTRated current 63ARated voltage 400VRows 1Mounting type Surface mountedType of door TransparentFrame size 4IP rating IP 40Catalogue Group ECT wall mounted plastic distribution boxes IP40No. of modules 4 total/per row 4total/per rowFrame size 1Nr. of rowsDoor Plastic, transparentmaterial, colorEnclosure base Plastic, whitematerial, colorNumber of PE/N terminals 4 connections 4connectionsGlow wire test 650Distribution box ECT4PT Surface mounted IP 40 4 / 4total/per row Plastic, transparentmaterial, color
