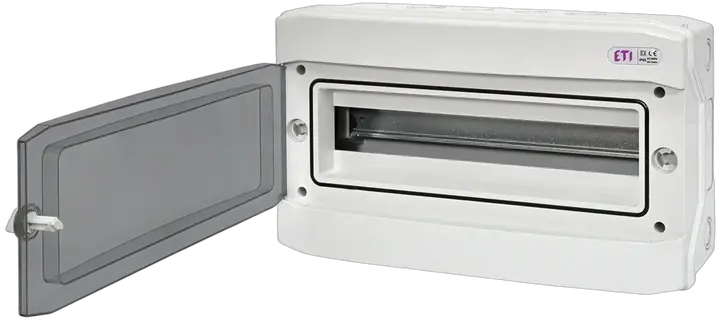

Distribution box ECH-18PT 001100350
Specifications
- ETI Code:
- 001100350
- Description:
- ECH-18PT
- Class name:
- Distribution box
- Mounting type:
- Surface mounted
- Protection Class:
- II
- Rated current (A):
- 63A
- Rated AC voltage (V):
- 400V
- Rated DC voltage (V):
- 1500V
- IP rating:
- IP65
- Number of modules (Total/per row):
- 18
- Frame size (Number of rows):
- 1
- Door (material, color):
- transparent,plastic
- Enclosure base (material, color):
- Plastic, grey
- Number of PE/N terminals (connections):
- 13
- Glow wire test (°C):
- 650°C
Documents
Logistic Data
Product
- Net weight of the product
- 1.7 kg
- Customs tariff
- 85381000
- logis_net_width
- 428 mm
- logis_net_height
- 259 mm
- logis_net_depth
- 150 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895931102
- Basic packaging weight
- 1.7 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895931119
- Transport packaging weight
- 9.179 kg
- Pallet quantity
- 90
