001102100

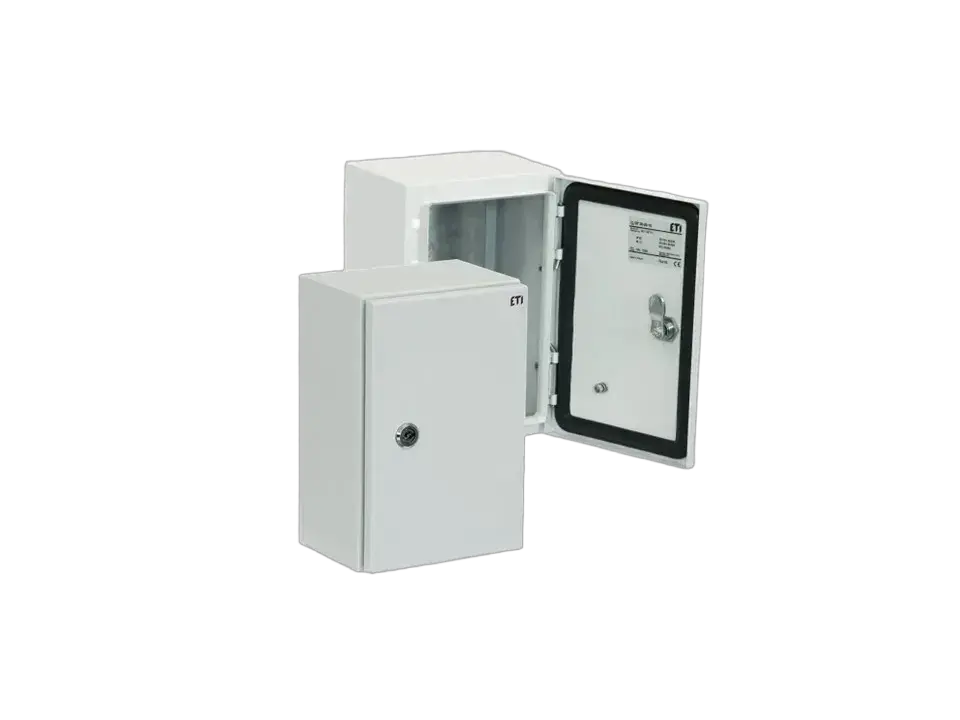

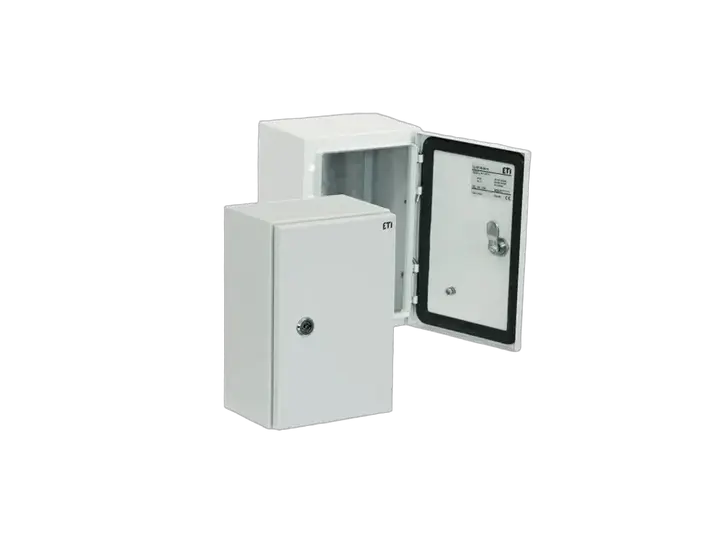

GT 25-20-15 Enclosure
- ETI Code:
- 001102100
- Function:
- Enclosure
- To use with:
- SOLID GSX system
- Network system:
- 1 phase and 3 phase system
- Isolation class:
- I
- Ambient temperature:
- -5/40 °C
- Standards:
- IEC/EN 62208, IEC/EN 60529, IEC/EN 62262
- Type of installation:
- Wall mounting
- Type of door:
- Full, Metal door
- Frame size:
- 150
- Key locks:
- One lock with a double-bit insert
- Type description:
- Wall mounted enclosure
- Protection class:
- I
- IP rating:
- IP66
- Mechanical resistance:
- IK10
- Height:
- 250 mm
- Width:
- 200 mm
- Depth:
- 150 mm
- Application:
- Indoor use
- Color:
- RAL 7035
- Catalogue group:
- SOLID GSX Enclosures
15 Logistics
Product
- Net weight of the product
- 3.61 kg
- Net width
- 200 mm
- Net height
- 250 mm
- Net depth
- 150 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895591535
- Basic packaging weight
- 3.7 kg
- Basic packaging volume
- 10 dm³
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895591542
- Transport packaging weight
- 621.6 kg
- Transport packaging volume
- 1,680 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85369001
16 ETIM
- Built-in depth
- 150 mm
- With mounting plate
- ✓
- Surface protection
- Powder coating
- Width
- 200 mm
- Degree of protection (IP)
- IP66
- Mounting method
- Surface mounted
- Impact strength
- IK10
- Protection class
- I
- Number of openings for flange plates
- 1
- With lock
- ✓
- Housing material
- Steel
- Depth
- 150 mm
- Colour
- Grey
- Type of door
- Single
- Height
- 250 mm
- RAL-number
- 7,035
ETIM Classification – Version 9.0
