001321802

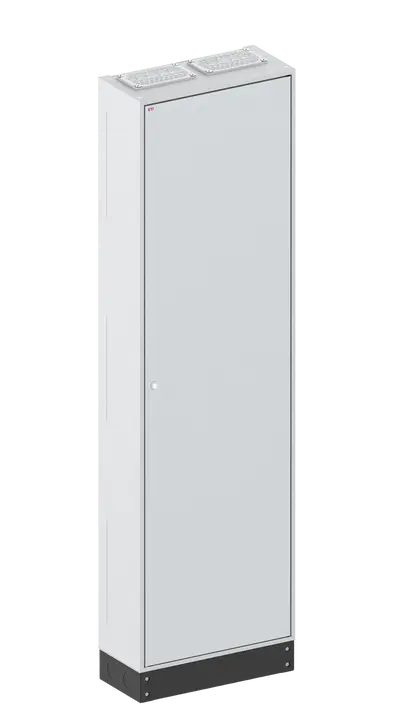

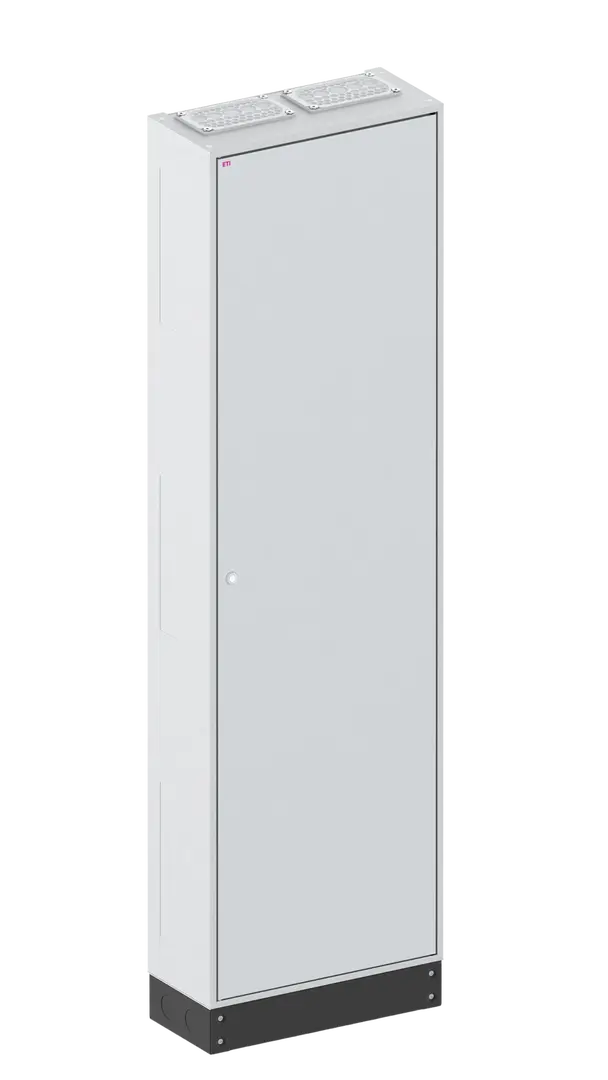

LXN250 2-12 PHN1 Enclosure
- ETI Code:
- 001321802
- Function:
- Obudowa
- Rated current:
- 630 A
- To use with:
- SOLID GSX system
- Rated AC voltage:
- 690 V
- Network system:
- 1 phase and 3 phase system
- Catalogue group:
- Enclosures
- Isolation class:
- I
- Ambient temperature:
- -5/40 °C
- Type of installation:
- Floor standing
- Type of door:
- Full, Metal door
- Frame size (Nr. of rows):
- 12
- Built-in depth:
- 250 mm
- Key locks:
- 3-points lock system with 1333 code insert
- System size:
- 2-12 mm
- Protection class:
- I
- IP rating:
- IP41(42,44)
- Mechanical resistance:
- IK10
- Height:
- 1,850 mm
- Width:
- 550 mm
- Depth:
- 250 mm
- Application:
- Indoor use
- Surface finish:
- Powder coated steel
- Color:
- RAL 7035
- Working temperature:
- -5-40 °C
- Standards:
- IEC/EN 62208, IEC/EN 60529, IEC/EN 62262, IEC/EN 61439-1
- Directives:
- RoHS
14 Logistics
Product
- Net weight of the product
- 41.062 kg
- Net width
- 550 mm
- Net height
- 1,950 mm
- Net depth
- 250 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 5902047614101
- Transport packaging weight
- 44.152 kg
- Transport Packaging Dimensions Height
- 1,960 mm
- Transport Packaging Dimensions Width
- 560 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 329.28 dm³
- Pallet quantity
- 4 pcs
- Customs tariff
- 85381000
17 ETIM
- Nominal current (In)
- 630 A
- Surface protection
- Powder coating
- Width
- 550 mm
- Degree of protection (IP)
- IP41
- Impact strength
- IK10
- Number of modules
- 244
- Protection class
- I
- Number of openings for flange plates
- 2
- With lock
- ✓
- Number of rows
- 12
- Housing material
- Steel
- Depth
- 250 mm
- Extension possible
- ✓
- Colour
- Grey
- Height
- 1,850 mm
- Width in number of modular spacings
- 24
- RAL-number
- 7,035
ETIM Classification – Version 9.0
