001325100

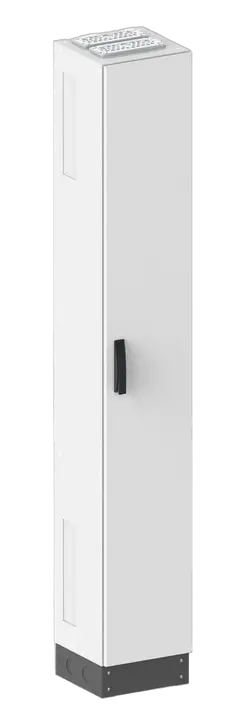

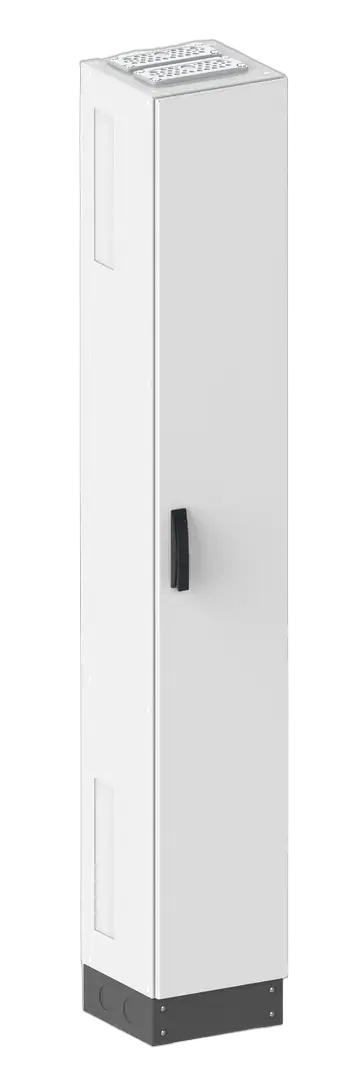

HXS300 1-12 PH1 Enclosure
- ETI Code:
- 001325100
- Function:
- Enclosure
- To use with:
- SOLID GSX system
- Rated AC voltage:
- 690 V
- Network system:
- 1 phase and 3 phase system
- Catalogue group:
- Enclosures
- Isolation class:
- I
- Ambient temperature:
- -5/40 °C
- Type of installation:
- Floor standing
- Type of door:
- Full, Metal door
- Frame size (Nr. of rows):
- 12
- Key locks:
- 3-points lock system without lock insert
- System size:
- 1-12 mm
- Type description:
- Standing enclosure
- Protection class:
- I
- IP rating:
- IP65
- Mechanical resistance:
- IK10
- Height:
- 1,850 mm
- Width:
- 300 mm
- Depth:
- 300 mm
- Application:
- Indoor use
- Surface finish:
- Powder coated steel
- Color:
- RAL 7035
- Working temperature:
- -5-40 °C
- Standards:
- IEC/EN 62208, IEC/EN 60529, IEC/EN 62262, IEC/EN 61439-1
- Directives:
- RoHS
15 Logistics
Product
- Net weight of the product
- 40 kg
- Net width
- 300 mm
- Net height
- 1,950 mm
- Net depth
- 300 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5902047613609
- Basic packaging weight
- 43.09 kg
- Basic Packaging Dimensions Height
- 1,960 mm
- Basic Packaging Dimensions Width
- 310 mm
- Basic Packaging Dimensions Depth
- 350 mm
- Basic packaging volume
- 212.66 dm³
Transport Packaging
- Transport packaging quantity
- 1 pcs
- Pallet quantity
- 1 pcs
- Customs tariff
- 85381000
18 ETIM
- Built-in depth
- 300 mm
- Surface protection
- Powder coating
- Width
- 300 mm
- Degree of protection (IP)
- IP65
- Mounting method
- Floor installation
- Impact strength
- IK10
- Number of modules
- 144
- Protection class
- I
- Number of openings for flange plates
- 4
- Number of rows
- 12
- Housing material
- Steel
- Depth
- 300 mm
- Extension possible
- ✓
- Colour
- Grey
- Type of door
- Single
- Height
- 1,850 mm
- Width in number of modular spacings
- 12
- RAL-number
- 7,035
ETIM Classification – Version 9.0
