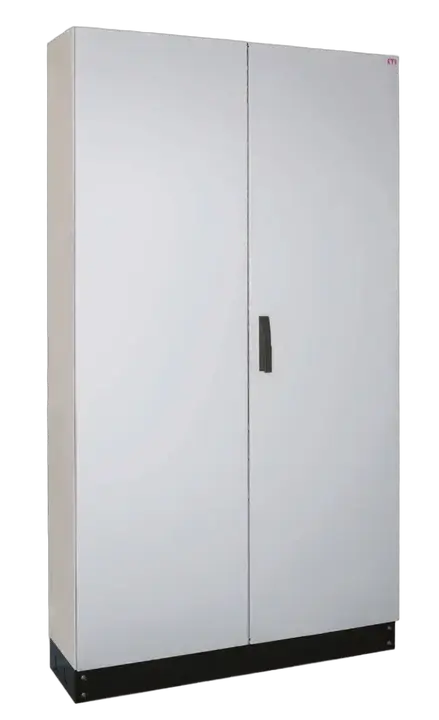

Enclosure HXS300 4-12 PH1V1 001325504
Specifications
- ETI Code:
- 001325504
- Description:
- HXS300 4-12 PH1V1
- Class name:
- Enclosure
- Protection Class:
- I
- IP rating:
- IP55
- Mechanical resistance:
- IK10
- Height (mm):
- 1850mm
- Width (mm):
- 1050mm
- Depth (mm):
- 300mm
- Application:
- Indoor use
- Surface finish:
- Powder coated steel
- Color:
- RAL 7035
- Working temperature (°C):
- -5°C-40°C
- Standards:
- IEC/EN 62208,IEC/EN 60529,IEC/EN 62262,IEC/EN 61439-1
- Directives:
- RoHS
Documents
Logistic Data
Product
- Net weight of the product
- 124.83 kg
- Customs tariff
- 85381000
- logis_net_width
- 1050 mm
- logis_net_height
- 1950 mm
- logis_net_depth
- 300 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5902047605291
- Basic packaging weight
- 129 kg
ETIM Clasification
- Classification
- EC000058
- Class name
- Empty cabinet
- Mounting method
- Floor installation
- Type of door
- Double
- Transparent cover/door
- No
- Height
- 1850mm
- Width
- 1050mm
- Depth
- 300mm
- Colour
- Grey
- Number of modules
- 576
- Number of rows
- 12
- Width in number of modular spacings
- 48
- Number of openings for flange plates
- 16
- Extension possible
- Yes
- Housing material
- Steel
- Surface protection
- Powder coating
- With mounting plate
- Yes
- Suitable for outdoor use
- No
- Degree of protection (IP)
- IP55
- Protection class
- I
- Impact strength
- IK10
