001327508

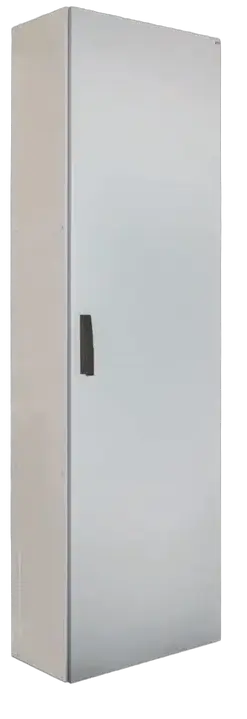

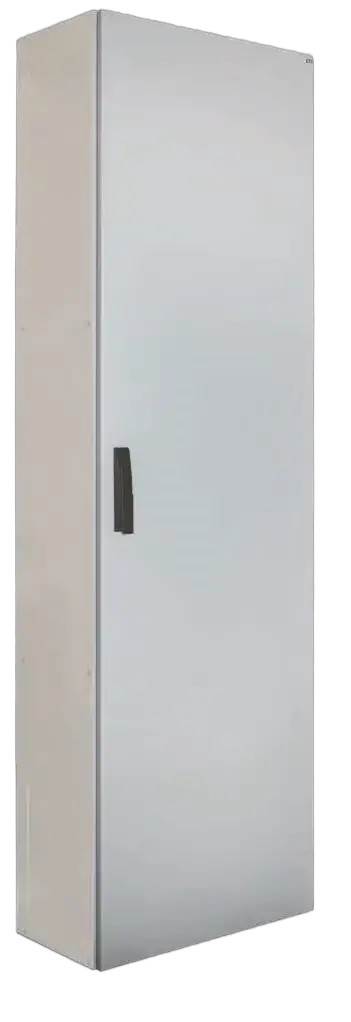

HXS400 2-13 Enclosure
- ETI Code:
- 001327508
- Function:
- Enclosure
- To use with:
- SOLID GSX system
- Rated AC voltage:
- 690 V
- Network system:
- 1 phase and 3 phase system
- Catalogue group:
- Enclosures
- Isolation class:
- I
- Ambient temperature:
- -5/40 °C
- Type of installation:
- Floor standing
- Type of door:
- Full, Metal door
- Frame size:
- 400
- Frame size (Nr. of rows):
- 13
- Key locks:
- 3-points lock system without lock insert
- Type description:
- Standing enclosure
- Protection class:
- I
- IP rating:
- IP65
- Mechanical resistance:
- IK10
- Height:
- 2,000 mm
- Width:
- 550 mm
- Depth:
- 400 mm
- Application:
- Indoor use
- Surface finish:
- Powder coated steel
- Color:
- RAL 7035
- Working temperature:
- -5-40 °C
- Standards:
- IEC/EN 62208, IEC/EN 60529, IEC/EN 62262, IEC/EN 61439-1
- Directives:
- RoHS
11 Logistics
Product
- Net weight of the product
- 65.53 kg
- Net width
- 550 mm
- Net height
- 2,000 mm
- Net depth
- 400 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 5902047605307
- Transport packaging weight
- 68 kg
- Transport packaging volume
- 506 dm³
- Pallet quantity
- 3 pcs
- Customs tariff
- 85381000
16 ETIM
- Surface protection
- Powder coating
- Width
- 550 mm
- Degree of protection (IP)
- IP65
- Mounting method
- Floor installation
- Impact strength
- IK10
- Number of modules
- 312
- Protection class
- I
- Number of openings for flange plates
- 8
- Number of rows
- 13
- Housing material
- Steel
- Depth
- 400 mm
- Extension possible
- ✓
- Colour
- Grey
- Type of door
- Single
- Height
- 2,000 mm
- Width in number of modular spacings
- 24
