001692499

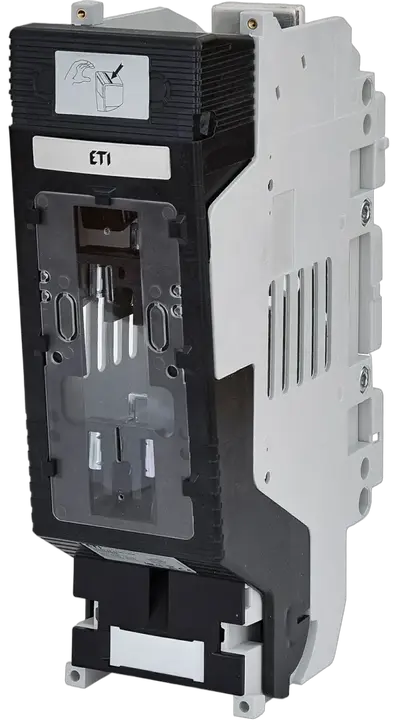

HVL 4a 1P 2xM12 1600 Fuse switch disconnector
- ETI Code:
- 001692499
- Type of Installation:
- Base plate mounting
- Size:
- NH4a
- Rated current:
- 1600 A
- Number of poles:
- 1
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-22B
- Type description:
- HVL
14 Logistics
Product
- Net weight of the product
- 5.303 kg
- Net width
- 108 mm
- Net height
- 354.5 mm
- Net depth
- 223 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4029155121626
- Transport packaging weight
- 5.485 kg
- Transport Packaging Dimensions Height
- 222 mm
- Transport Packaging Dimensions Width
- 355 mm
- Transport Packaging Dimensions Depth
- 118 mm
- Transport packaging volume
- 9.3 dm³
- Pallet quantity
- 80 pcs
- Customs tariff
- 85365080
4 ETIM
- Rated permanent current Iu
- 1,600 A
- Suitable for fuses
- NH00
- Degree of protection (IP), front side
- Other
- Number of poles
- 1
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
19 Tags
001692499Fuse switch disconnectorHVL 4a 1P 2xM12 1600NV/NHNV disconnectors with fusesHVLHVL1p1pInternationalFuse links NHHorizontal type fuse disconnectors NHSize: NH4aType description: HVLNumber of poles: 1Rated AC voltage: 690 V/690 VUtilization category: AC-22BRated current: 1600 A/1600 AFuse switch disconnector Size: NH4a Rated current: 1600 A/1600 A Number of poles: 1 Rated AC voltage: 690 V/690 V Utilization category: AC-22B
Accessories 55 All Accessories
Similar Products 66 All Products
001690870
KVL-00 3p M8-M8
- Class name
- Fuse switch disconnector
- Size
- NH00
- Rated current
- 160 A
- Number of poles
- 3
- Rated AC voltage
- 400/690 V
001690871
KVL-00 3p BC95-BC95
- Class name
- Fuse switch disconnector
- Size
- NH00
- Rated current
- 160 A
- Number of poles
- 3
- Rated AC voltage
- 690 V
001690872
KVL-1 3p M10-M10
- Class name
- Fuse switch disconnector
- Size
- NH1
- Rated current
- 250 A
- Number of poles
- 3
- Rated AC voltage
- 690 V
001690873
KVL-2 3p M10-M10
- Class name
- Fuse switch disconnector
- Size
- NH2
- Rated current
- 400 A
- Number of poles
- 3
- Rated AC voltage
- 690 V
001690874
KVL-3 3p M10-M10
- Class name
- Fuse switch disconnector
- Size
- NH3
- Rated current
- 630 A
- Number of poles
- 3
- Rated AC voltage
- 690 V
001690875

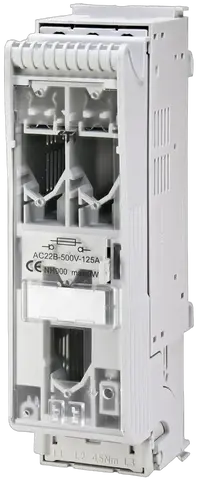

KVL-000 3p F50
