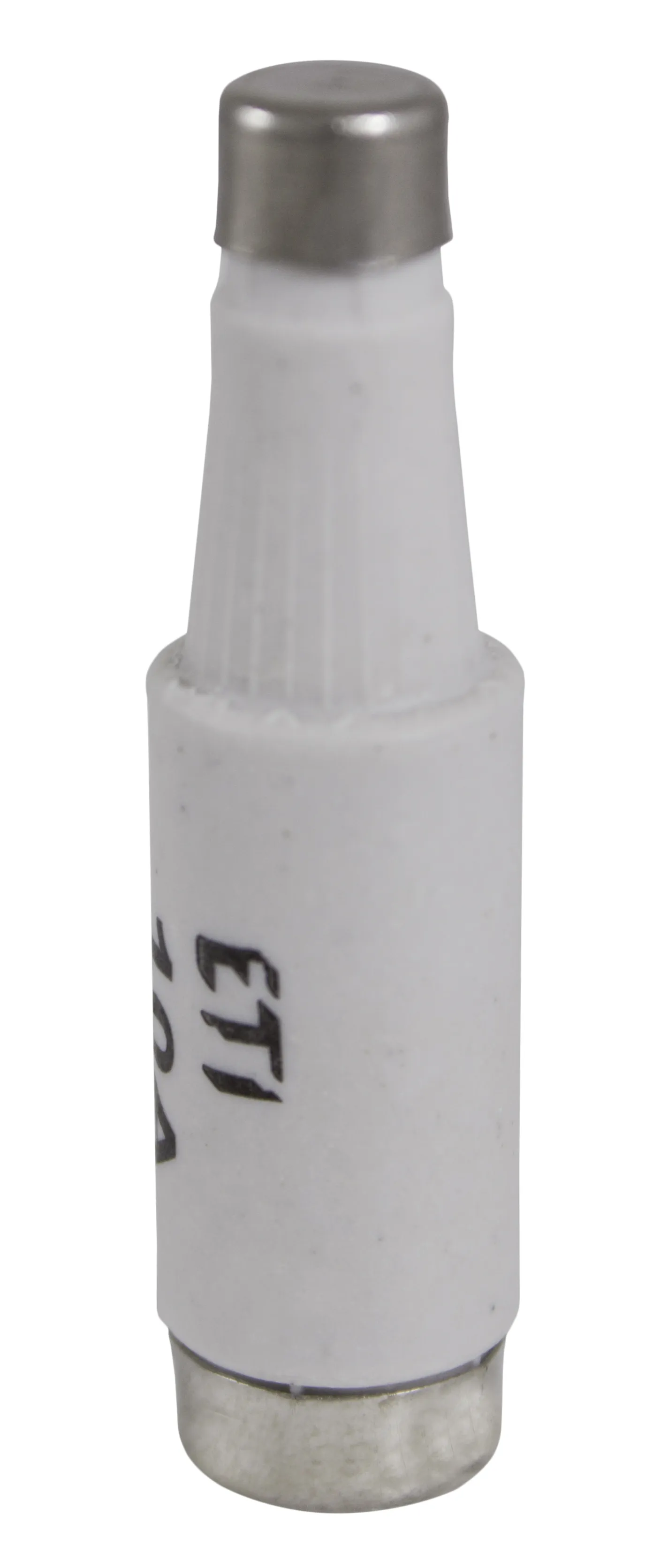

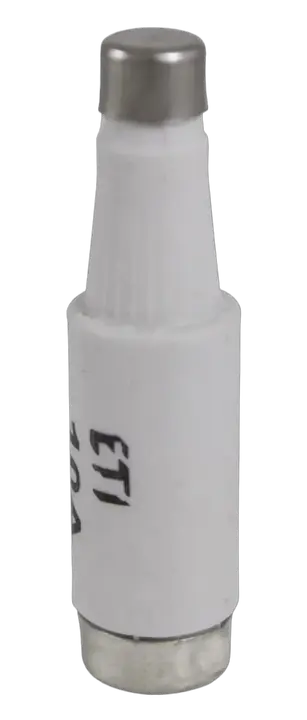

Fuse link DI DZ 2A/500V 002311101

Specifications

ETI Code:
002311101
Description:
DI DZ 2A/500V
Class name:
Fuse link
Type:
D
Size:
DI
Rated current (A):
2
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
DZ
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E16
Indicator:
Top fuse status indicator
Power dissipation (W):
2,6
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905813
Net weight of the product
12 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895279303
Basic packaging weight
0.11 kg
Basic packaging volume
0.1

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895279310
Transport packaging weight
6 kg
Transport packaging volume
6.102
Pallet quantity
60000
Pallet volume
732.24
Classification
EC000099
Class name
D-system fuse link
Colour code
Pink
Construction size
DI
Nominal rated current
2A
Nominal rated voltage
500V
Release characteristic
Fast (F)
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002311101Fuse link, DI DZ 2A/500VDLow voltage fuse-linksFuse-link DDIDZDZFuse links D, D0, CD fuse linksDI DZ 2A/500VTripping characteristic Fast (F)Rated current 2AType DRated voltage 500VSize DIProduct group D Low voltage FusesCharacteristics DZRated AC voltage 500VRated DC voltage 250VDimensions E16Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 2,6WCatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DI D DI 2A 500V 250V DZ
