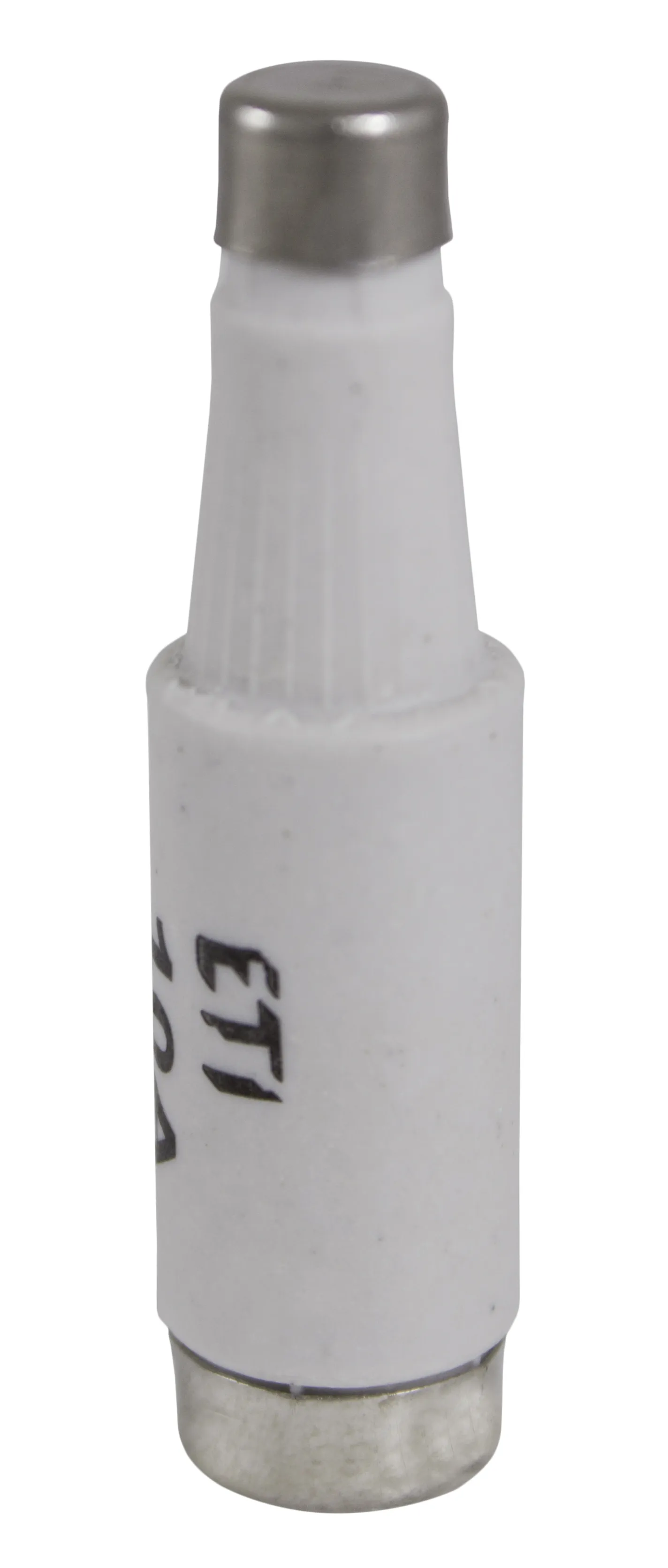

Fuse link DI DZ 16A/500V 002311105

Specifications

ETI Code:
002311105
Description:
DI DZ 16A/500V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DI
Rated current (A):
16
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
DZ
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E16
Indicator:
Top fuse status indicator
Power dissipation (W):
3,7
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905844
Net weight of the product
13  g
Customs tariff
85361050
logis_net_width
13  mm
logis_net_height
13  mm
logis_net_depth
50  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895279389
Basic packaging weight
0.135  kg

Level 2 Packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895279396
Transport packaging weight
7.5  kg
Pallet quantity
60000
Classification
EC000099
Class name
D-system fuse link
Construction size
DI
Rated current
16A
Rated voltage
500V
Colour code
Grey
Utilization category
Other
Release characteristic
Fast (F)
ETIM Classification – Version 7.0
