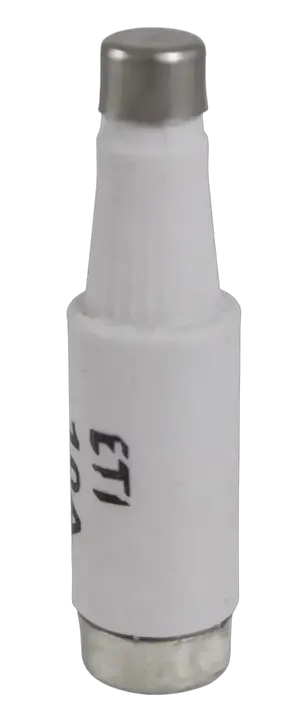

Fuse link DI gG 10A/500V 002311404

Specifications

ETI Code:
002311404
Description:
DI gG 10A/500V
Class name:
Fuse link
Type:
D
Size:
DI
Rated current (A):
10
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E16
Indicator:
Top fuse status indicator
Power dissipation (W):
1,6
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905912
Net weight of the product
13 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895279488
Basic packaging weight
0.12 kg
Basic packaging volume
0.1

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895279495
Transport packaging weight
6.5 kg
Transport packaging volume
6.102
Pallet quantity
60000
Pallet volume
732.24
Classification
EC000099
Class name
D-system fuse link
Colour code
Red
Construction size
DI
Nominal rated current
10A
Nominal rated voltage
500V
Release characteristic
Time-lag
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0
