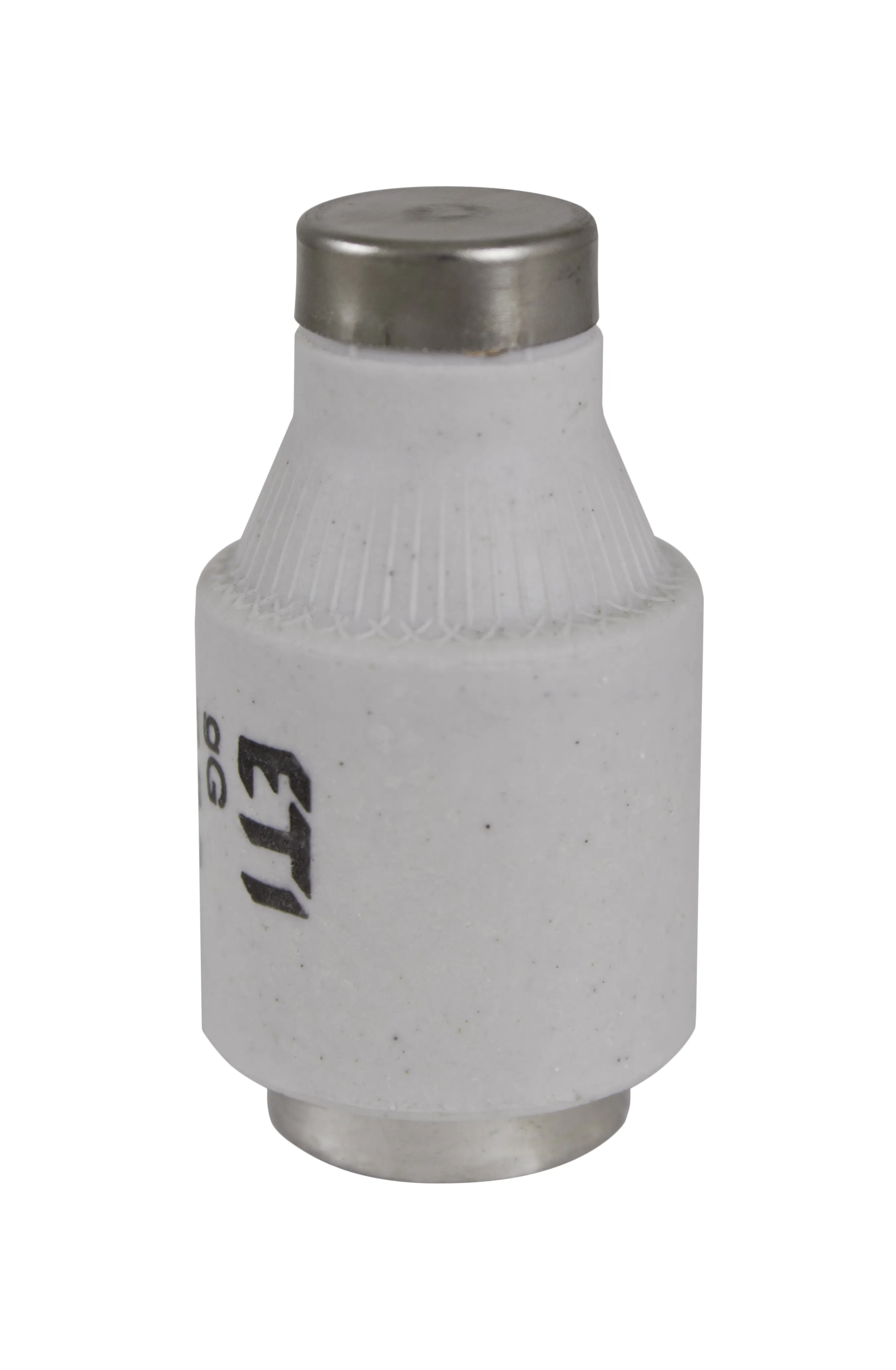

Fuse link DIII gG 50A/500V 002313402

Specifications

ETI Code:
002313402
Description:
DIII gG 50A/500V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
50
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E33
Indicator:
Top fuse status indicator
Power dissipation (W):
5,7
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895906148
Net weight of the product
51 g
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895000181
Basic packaging weight
0.267 kg
Basic packaging volume
0.203

Transport packaging

Transport packaging quantity
250
EAN code for a transport packaging
3838895710387
Transport packaging weight
13 kg
Transport packaging volume
17.4
Pallet quantity
13000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
White
Construction size
DIII
Nominal rated current
50A
Nominal rated voltage
500V
Release characteristic
Time-lag
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002313402Fuse link, DIII gG 50A/500VDLow voltage fuse-linksFuse-link DDIIITDZTDZFuse links D, D0, CD fuse linksDIII GG 50A/500VTripping characteristic Time-lagRated current 50AType DRated voltage 500VSize DIIIProduct group D Low voltage FusesCharacteristics gGRated AC voltage 500VRated DC voltage 250VDimensions E33Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 5,7WCatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DIII D DIII 50A 500V 250V gG
