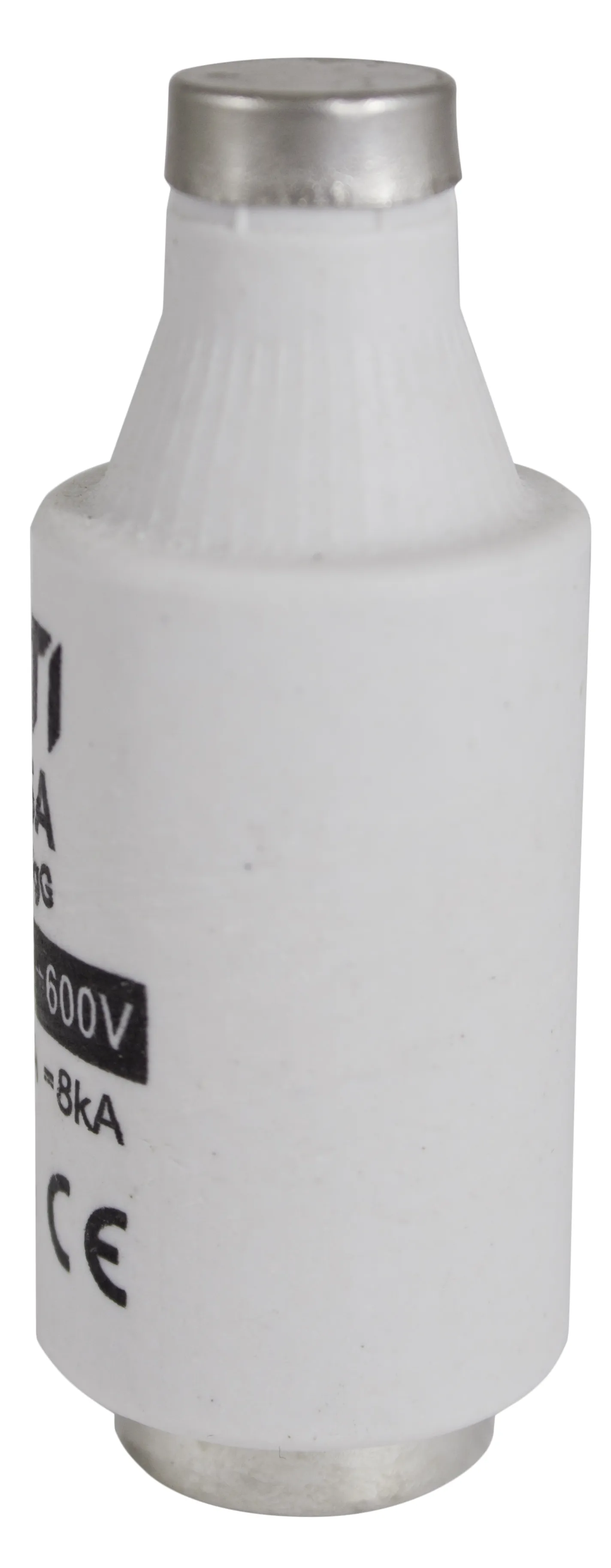

Fuse link DIII gG 35A/690V 002313508

Specifications

ETI Code:
002313508
Description:
DIII gG 35A/690V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DIII
Rated current (A):
35
Rated AC voltage (V):
690
Rated DC voltage (V):
600
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029164
Net weight of the product
0.077  kg
Customs tariff
85361050
logis_net_width
27  mm
logis_net_height
27  mm
logis_net_depth
70  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895421948
Basic packaging weight
0.378  kg

Level 2 Packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895421955
Transport packaging weight
15.4  kg
Pallet quantity
10400
Classification
EC000099
Class name
D-system fuse link
Construction size
DIII
Rated current
35A
Rated voltage
690V
Colour code
Black
Utilization category
gL/gG (cable protection/equipment protection)
Release characteristic
Time-lag (T)
ETIM Classification – Version 7.0
