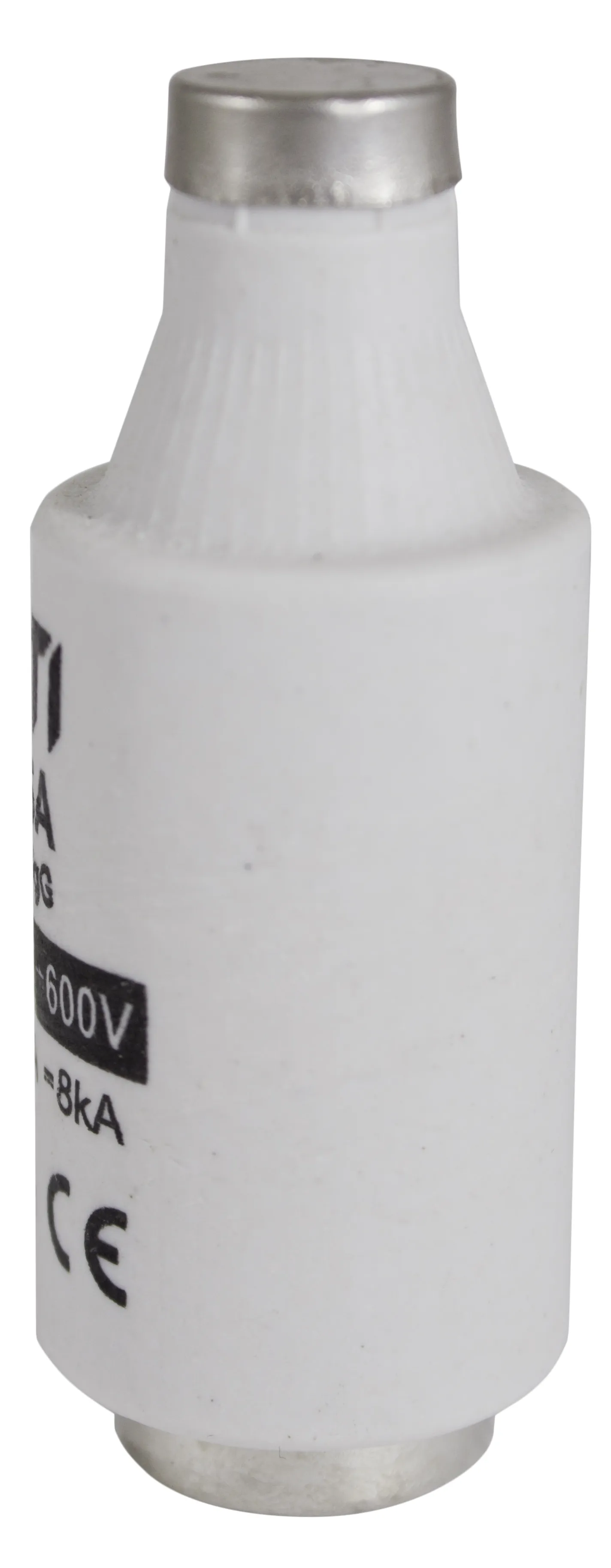

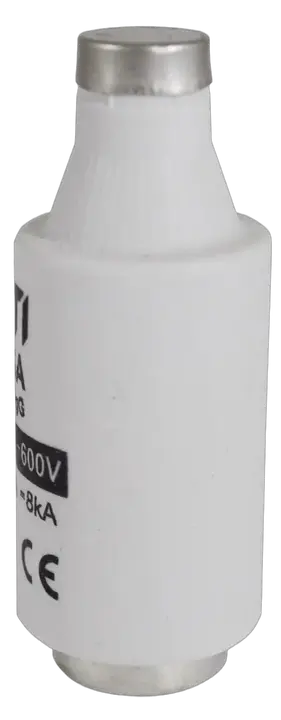

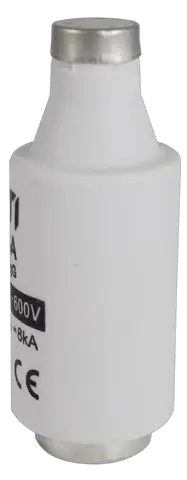

Fuse link DIII gG 50A/690V 002313509

Specifications

ETI Code:
002313509
Description:
DIII gG 50A/690V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
50
Rated AC voltage (V):
690
Rated DC voltage (V):
600
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895421962
Net weight of the product
0.393 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895421962
Basic packaging weight
0.393 kg
Basic packaging volume
0.305

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895421979
Transport packaging weight
16 kg
Transport packaging volume
17.4
Pallet quantity
10400
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
White
Construction size
DIII
Rated current
50A
Rated voltage
690V
Release characteristic
Time-lag (T)
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0
