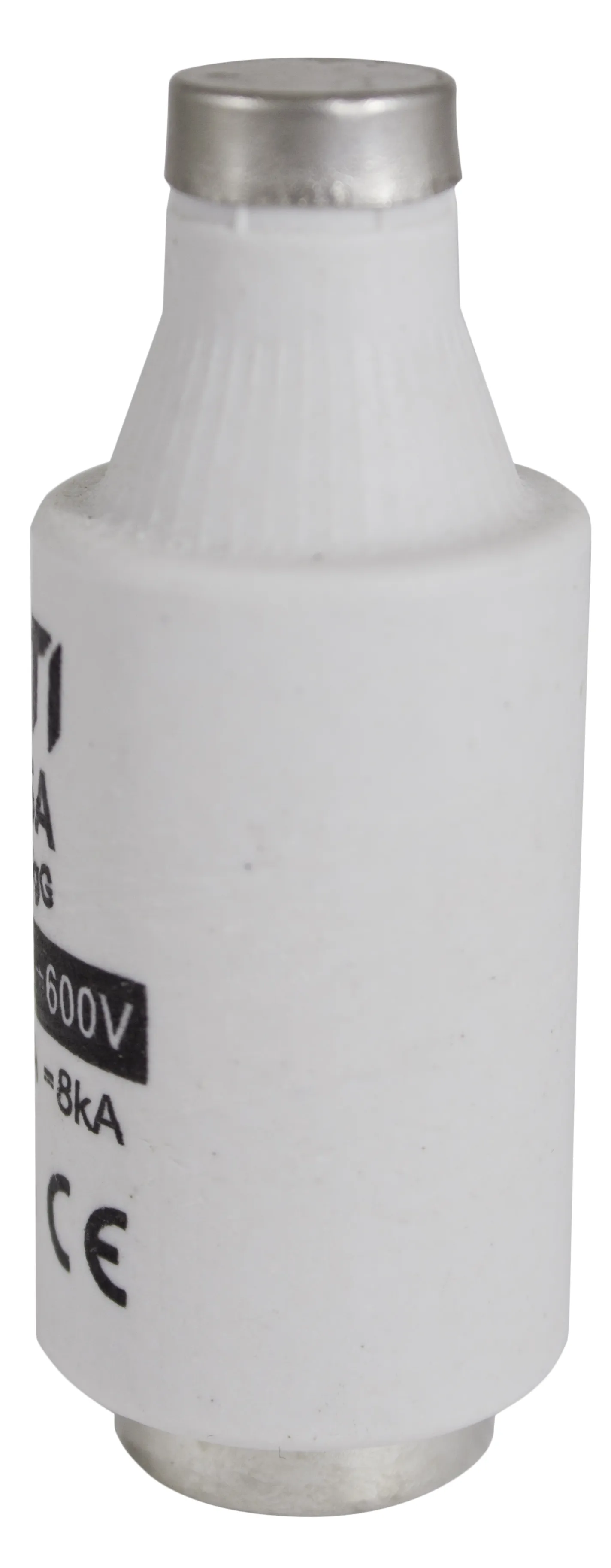

Fuse link DIII gG 63A/690V 002313510

Specifications

ETI Code:
002313510
Description:
DIII gG 63A/690V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
63
Rated AC voltage (V):
690
Rated DC voltage (V):
600
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895421986
Net weight of the product
0.398 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895421986
Basic packaging weight
0.398 kg
Basic packaging volume
0.305

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895421993
Transport packaging weight
16.2 kg
Transport packaging volume
17.4
Pallet quantity
10400
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Copper
Construction size
DIII
Nominal rated current
63A
Nominal rated voltage
690V
Release characteristic
Time-lag
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002313510Fuse link, DIII gG 63A/690VDLow voltage fuse-linksFuse-link DDIII690VgGFuse links D, D0, CD fuse linksDIII GG 63A/690VTripping characteristic Time-lagRated current 63AType DRated voltage 690VSize DIIIProduct group D Low voltage FusesCharacteristics gGRated AC voltage 690VRated DC voltage 600VDimensions E33Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kACatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DIII D DIII 63A 690V 600V gG
