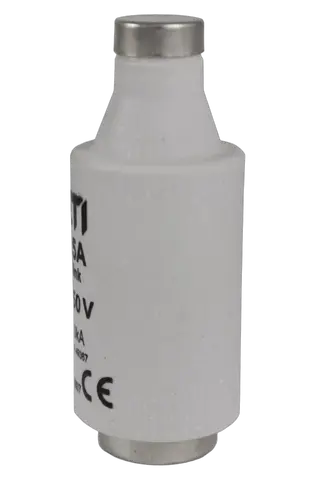

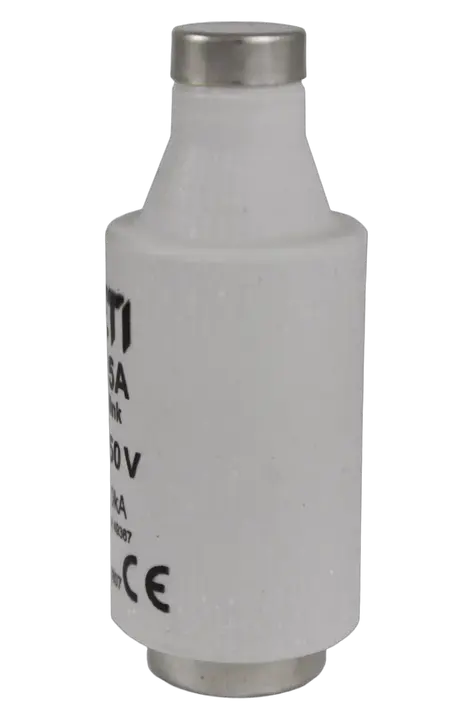

Fuse link DIII gF 25A/750V 002313607

Specifications

ETI Code:
002313607
Description:
DIII gF 25A/750V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
25
Rated AC voltage (V):
750
Characteristics:
gF
Breaking capacity AC (kA):
10
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895422129
Net weight of the product
0.373 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895422129
Basic packaging weight
0.373 kg
Basic packaging volume
0.305

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895422136
Transport packaging weight
15.2 kg
Transport packaging volume
17.4
Pallet quantity
10400
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Yellow
Construction size
DIII
Rated current
25A
Rated voltage
750V
Release characteristic
Fast (F)
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002313607Fuse link, DIII gF 25A/750VDLow voltage fuse-linksFuse-link DDIIIgFgFFuse links D, D0, CD fuse linksDIII GF 25A/750VTripping characteristic Fast (F)Rated current 25AType DRated voltage 750VSize DIIIProduct group D Low voltage FusesCharacteristics gFRated AC voltage 750VDimensions E33Indicator Top fuse status indicatorBreaking capacity AC 10kACatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DIII D DIII 25A 750V gF
