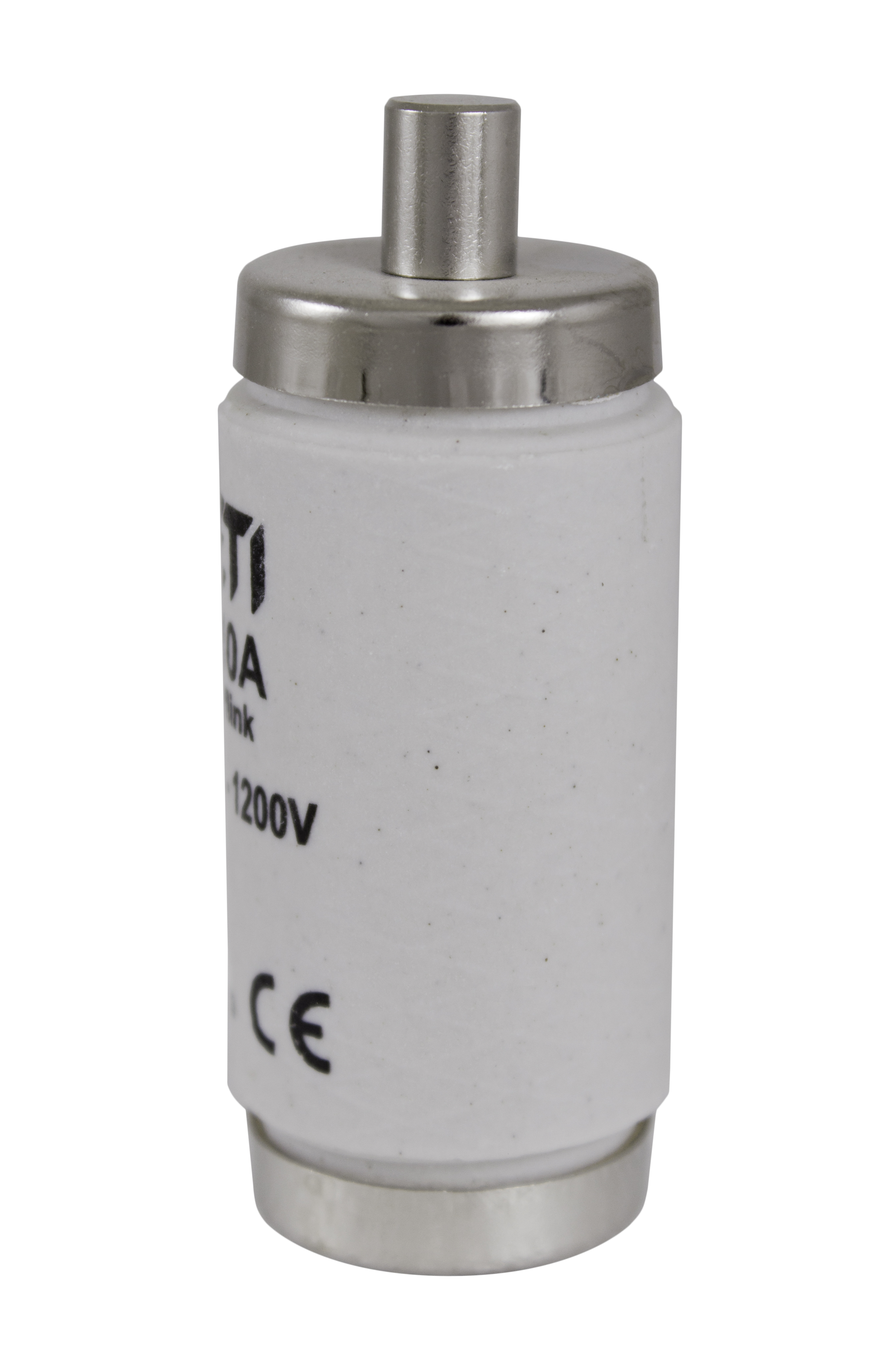

Fuse link DIII gF 4A/1200V 002313621

Specifications

ETI Code:
002313621
Description:
DIII gF 4A/1200V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
4
Rated AC voltage (V):
1200
Characteristics:
gF
Breaking capacity AC (kA):
10
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895422228
Net weight of the product
0.413 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895422228
Basic packaging weight
0.413 kg
Basic packaging volume
0.305

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895422235
Transport packaging weight
16.8 kg
Transport packaging volume
17.4
Pallet quantity
10400
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Brown
Construction size
DIII
Rated current
4A
Rated voltage
1200V
Release characteristic
Fast (F)
Utilization category
Other
ETIM Classification – Version 7.0
