Fuse link DV gG 125A/500V 002315401

Specifications

ETI Code:
002315401
Description:
DV gG 125A/500V
Class name:
Fuse link
Type:
D
Size:
DV
Rated current (A):
125
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8

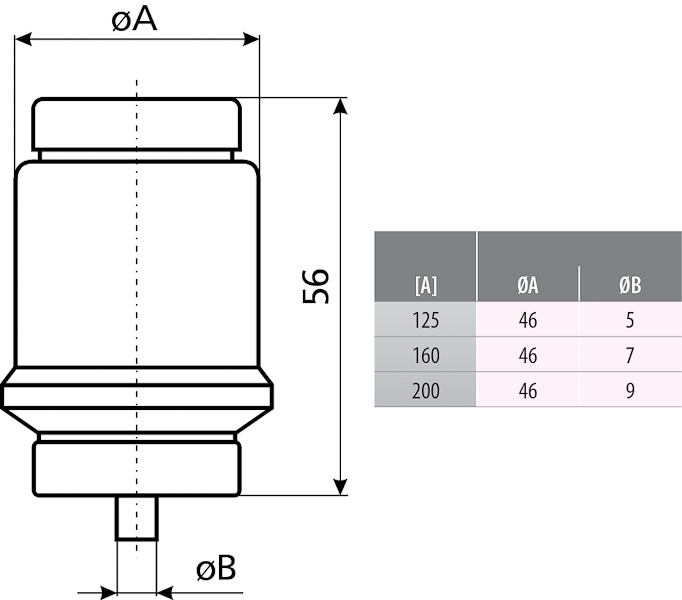

Dimensions:
R2
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895012399
Net weight of the product
1.77 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895012399
Basic packaging weight
1.77 kg
Basic packaging volume
1.14

Transport packaging

Transport packaging quantity
60
EAN code for a transport packaging
3838895163701
Transport packaging weight
11.1 kg
Transport packaging volume
17.4
Pallet quantity
3120
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Yellow
Construction size
DV
Nominal rated current
125A
Nominal rated voltage
500V

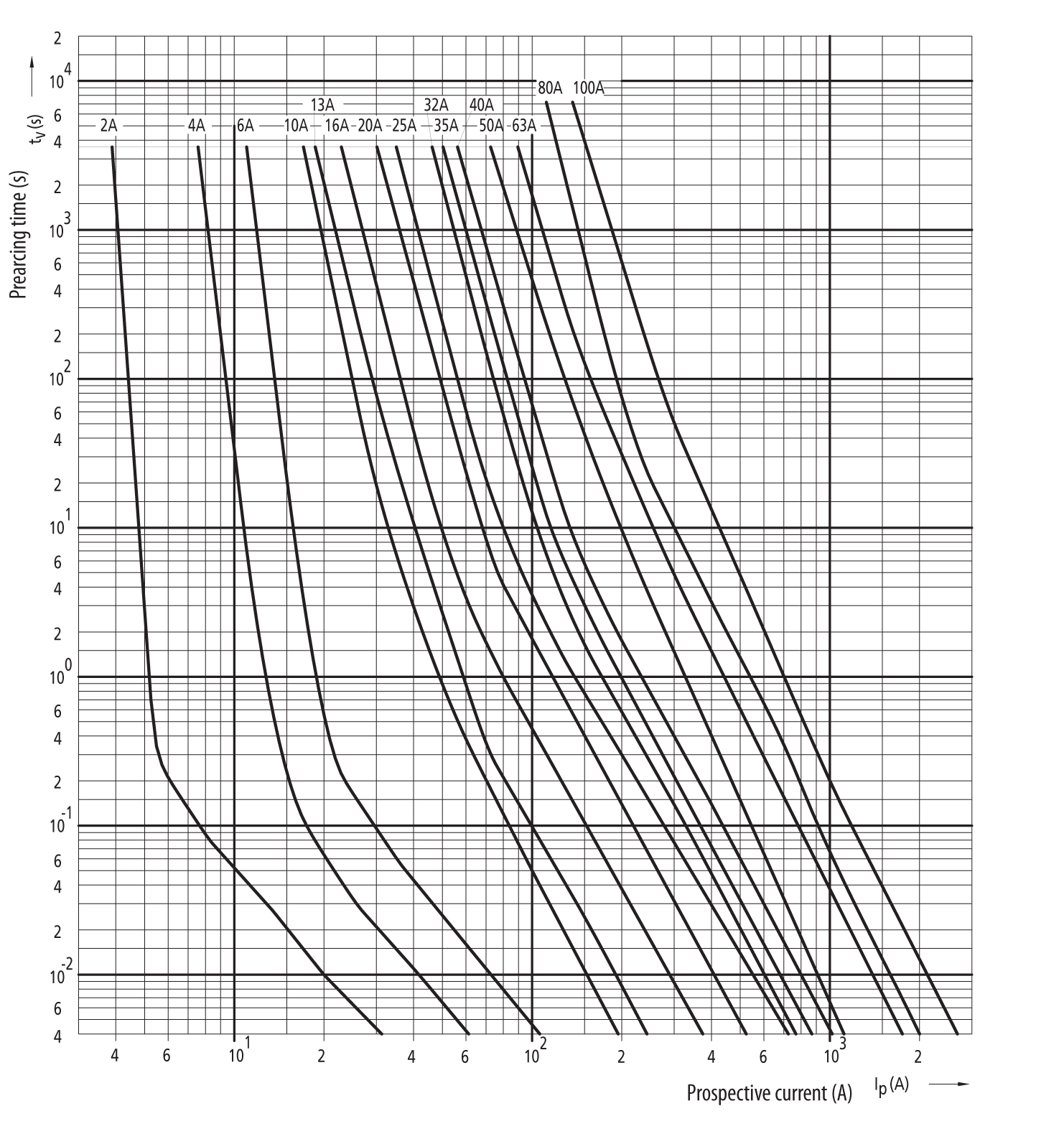

Release characteristic
Time-lag
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002315401Fuse link, DV gG 125A/500VDLow voltage fuse-linksFuse-link DDVTDZTDZFuse links D, D0, CD fuse linksDV GG 125A/500VTripping characteristic Time-lagRated current 125AType DRated voltage 500VSize DVProduct group D Low voltage FusesCharacteristics gGRated AC voltage 500VRated DC voltage 250VDimensions R2Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kACatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DV D DV 125A 500V 250V gG
