002461230

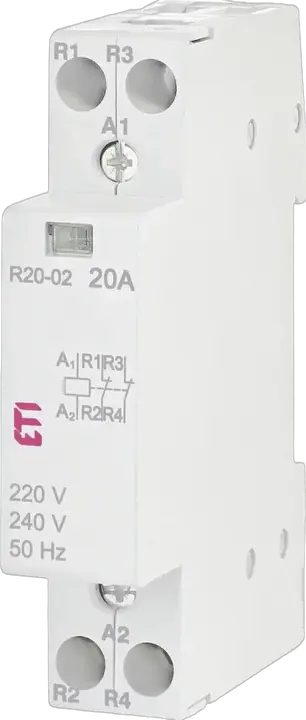

R 20-02 230V Modular contactor
- ETI Code:
- 002461230
- Depth:
- 60 mm
- Rated operational current Ie at AC1:
- 20 A
- IP rating:
- IP40
- Residual current type:
- AC
- Type description:
- AC
- Rated operational current Ie AC-1/AC-7:
- 20 A
- Rated operational voltage (AC):
- 250 V
- Rated control circuit voltage Uc (AC):
- 230 V
- Current type:
- AC
- Rated frequency:
- 50/60 Hz
- No. of NC contacts:
- 2
- Function:
- Modular contactor
- Type of installation:
- DIN rail 35 mm
- Catalogue group:
- R
5 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722903418
- Net weight of the product
- 0.12 kg
- Net width
- 17.5 mm
- Net height
- 88.6 mm
- Net depth
- 65 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895141075
- Basic packaging weight
- 1.44 kg
- Basic Packaging Dimensions Height
- 216 mm
- Basic Packaging Dimensions Width
- 90 mm
- Basic Packaging Dimensions Depth
- 73 mm
- Basic packaging volume
- 1.419 dm³
Transport Packaging
- Transport packaging quantity
- 120 pcs
- EAN code for a transport packaging
- 3838895162117
- Transport packaging weight
- 14.65 kg
- Transport Packaging Dimensions Height
- 190 mm
- Transport Packaging Dimensions Width
- 225 mm
- Transport Packaging Dimensions Depth
- 385 mm
- Transport packaging volume
- 16.459 dm³
- Pallet quantity
- 6,000 pcs
- Customs tariff
- 85364900
17 ETIM
- Additional equipment possible
- ✓
- Voltage type (excitation voltage)
- AC
- Built-in depth
- 60 mm
- Number of contacts as normally closed contact
- 2
- Max. load fluorescent lamp
- 935 VA
- Voltage type (operating voltage)
- AC/DC
- Degree of protection (IP)
- IP20
- Max. load fluorescent lamp (parallel compensated)
- 1,020 VA
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Max. load fluorescent lamp (Duo circuit)
- 2,320 VA
- Rated operation current
- 20 A
- Max. incandescent lamp load
- 2,160 W
- Width in number of modular spacings
- 1
- Rated excitation voltage(Min)
- 230 V
- Rated operating voltage(Min)
- 24 V
- Rated operating voltage(Max)
- 230 V
- Rated excitation voltage(Max)
- 230 V
ETIM Classification – Version 9.0
