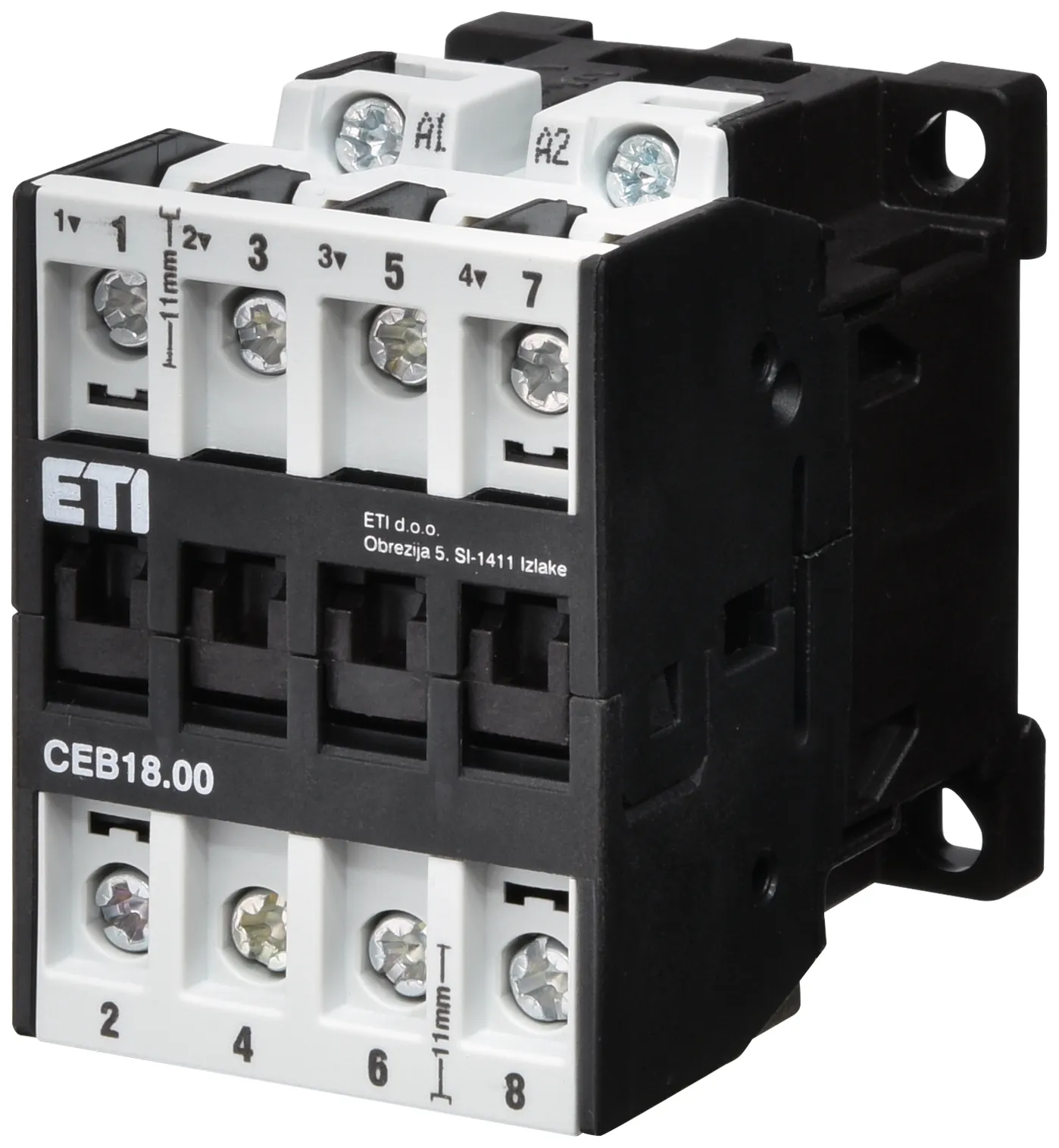

Motor contactor CEB18.00-230V-50/60HZ 002462002
Specifications
- ETI Code:
- 002462002
- Description:
- CEB18.00-230V-50/60HZ
- Class name:
- Motor contactor
- Function:
- 4-pole contactor
- Number of poles:
- 4
- Rated Frequency (Hz):
- 50/60
- Rated operational voltage AC (V):
- 400
- Rated AC control circuit voltage Uc (V):
- 230
- Rated operation current Ie at AC1 (A):
- 32
- Rated operation current Ie at AC3, 400 V (A):
- 18
- Rated operation power at AC3 (kW):
- 7,5
Documents
Logistic Data
Product
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400117359
- Basic packaging weight
- 0.262 kg
Transport packaging
- Transport packaging quantity
- 66
- EAN code for a transport packaging
- 3838400117540
- Transport packaging weight
- 17.542 kg
- Pallet quantity
- 2244
ETIM Clasification
- Classification
- EC000066
- Class name
- Power contactor, AC switching
- Rated operation power at AC-3, 400 V
- 7,5kW
CEB18.00-230V-50/60HZ
