002464093

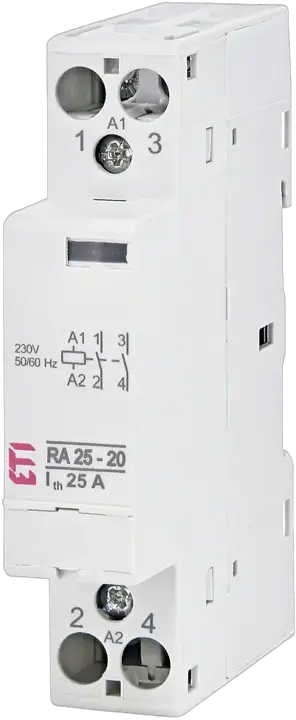

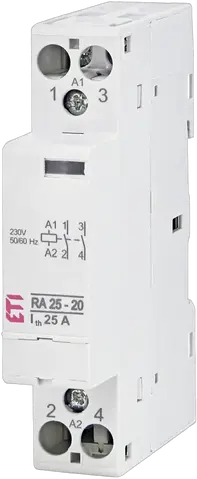

RA 25-20 230V AC Modular contactor
- ETI Code:
- 002464093
- Rated operational current Ie at AC1:
- 25 A
- Residual current type:
- AC
- Type description:
- AC
- Rated operational current Ie AC-1/AC-7:
- 25 A
- Rated operational voltage (AC):
- 400 V
- Rated control circuit voltage Uc (AC):
- 230 V
- Current type:
- AC
- Rated frequency:
- 50/60 Hz
- No. of NO contacts:
- 2
- Function:
- Modular contactor
- Catalogue group:
- RA
4 Documents
21 Logistics
Product
- Net weight of the product
- 240 g
- Net width
- 17.5 mm
- Net height
- 85 mm
- Net depth
- 65.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895747642
- Basic packaging weight
- 1.3 kg
- Basic Packaging Dimensions Height
- 93 mm
- Basic Packaging Dimensions Width
- 74 mm
- Basic Packaging Dimensions Depth
- 180 mm
- Basic packaging volume
- 1.239 dm³
Transport Packaging
- Transport packaging quantity
- 80 pcs
- EAN code for a transport packaging
- 3838895747659
- Transport packaging weight
- 10.4 kg
- Transport Packaging Dimensions Height
- 195 mm
- Transport Packaging Dimensions Width
- 165 mm
- Transport Packaging Dimensions Depth
- 445 mm
- Transport packaging volume
- 14.318 dm³
- Pallet quantity
- 5,600 pcs
- Customs tariff
- 85364900
1 Diagrams
23 Tags
002464093Modular contactorRA 25-20 230V ACETICONModular contactorsType-R2p, 1-module25 A25 AInternationalContactors ETICONModular Contactors for installation into distribution boards and accesoriesModular Contactors for instalation into distribution boardsNo. of NC contacts: 0Rated operational voltage (AC): 400 VRated operational current Ie AC-1/AC-7: 25 ARated control circuit voltage Uc (AC): 230 VCurrent type: ACFunction: Modular contactorNo. of NO contacts: 2Catalogue Group: RARated Frequency: 50 Hz/60 HzModular contactor Rated operational current Ie AC-1/AC-7: 25 A Rated control circuit voltage Uc (AC): 230 V Current type: AC No. of NO contacts: 2 No. of NC contacts: 0 Function: Modular contactor Catalogue Group: RA
