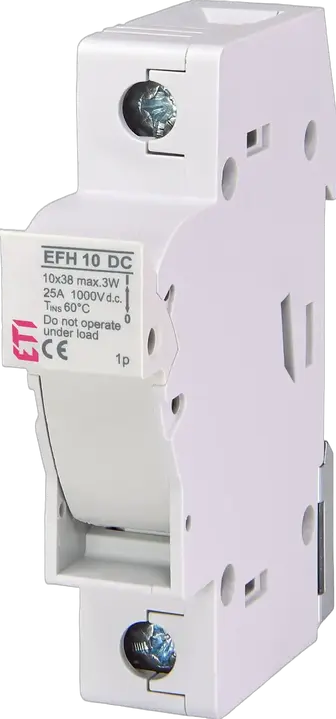

Fuse - base EFH 10 DC 1p 002540201
Specifications
- ETI Code:
- 002540201
- Description:
- EFH 10 DC 1p
- Class name:
- Fuse - base
- Rated current (A):
- 25
- Number of poles:
- 1
- To use with:
- CH gPV fuse-links
- Size:
- 10x38
- Rated DC voltage (V):
- 1000
- Application:
- Photovoltaic Installation
- UL certificate:
- E356295
- Product group:
- LV-fuse base
- Utilization category:
- DC-20B
- Connection:
- 1 - 25mm2
- Mounting:
- 35mm DIN rail
- Catalogue Group:
- LV-fuse disconnector
- Ambient temperature (°C):
- -5 + 40°C
- Mounting type:
- TH 35
- Standards:
- IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-19
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895867821
- Net weight of the product
- 0.063 kg
- Customs tariff
- 85389099
- logis_net_width
- 18 mm
- logis_net_height
- 83 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895712039
- Basic packaging weight
- 0.812 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895712046
- Transport packaging weight
- 7.564 kg
- Pallet quantity
- 5616
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Nominal voltage
- 1000V
- Mounting method
- Other
- For fuse size
- 10x38 mm
- Number of poles
- 1
