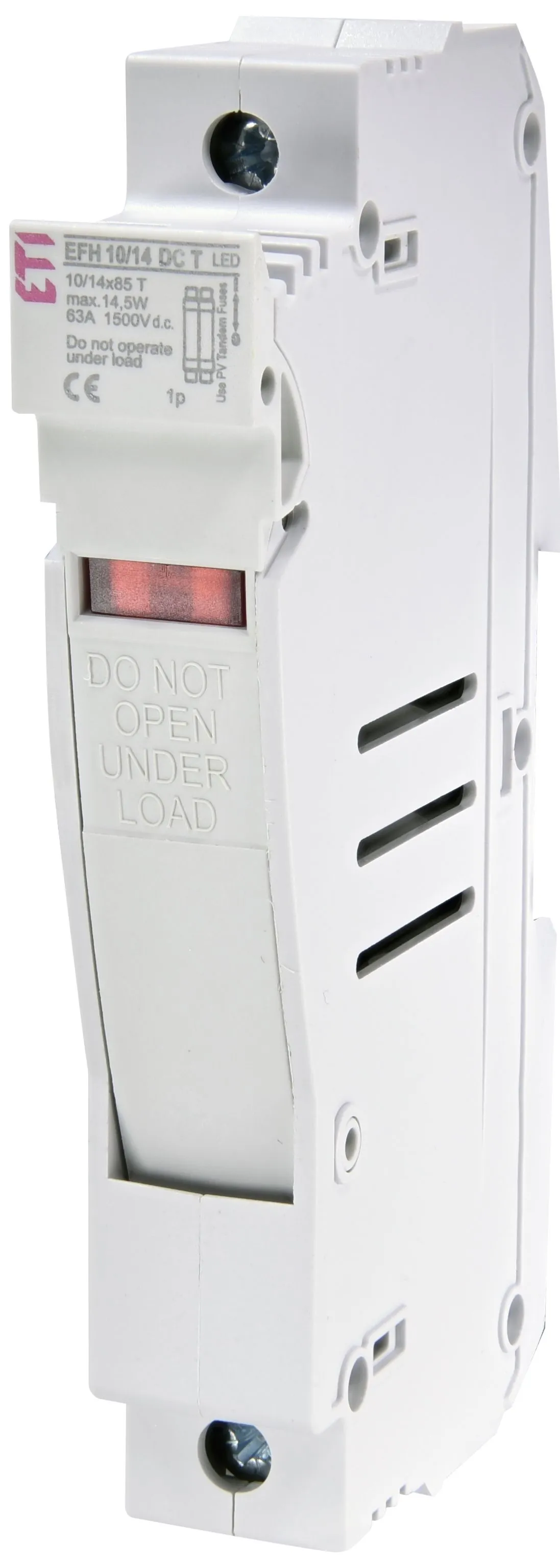

Fuse - base EFH 10/14 T DC LED 1p 002580016
Specifications
- ETI Code:
- 002580016
- Description:
- EFH 10/14 T DC LED 1p
- Class name:
- Fuse - base
- Rated current (A):
- 63
- Number of poles:
- 1
- To use with:
- CH gPV fuse-links
- Size:
- 10/14x85 T
- Rated DC voltage (V):
- 1500
- Indicator:
- LED
- Application:
- Photovoltaic Installation
- UL certificate:
- E356295
- Utilization category:
- DC-PV0
- Connection:
- 0,75 - 50mm2
- Mounting:
- 35mm DIN rail
- Ambient temperature (°C):
- -5...+40°C
- Mounting type:
- TH 35
- Standards:
- IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-19
Documents
Logistic Data
Product
- Customs tariff
- 85389099
- logis_net_width
- 22 mm
- logis_net_height
- 136 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895948025
- Basic packaging weight
- 1.77 kg
Transport packaging
- Transport packaging quantity
- 160
- EAN code for a transport packaging
- 3838895948032
- Transport packaging weight
- 29.12 kg
- Pallet quantity
- 2560
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Nominal voltage
- 1500V
- Mounting method
- Other
- For fuse size
- 10x85 mm
- Number of poles
- 1
- Degree of protection (IP)
- IP20
