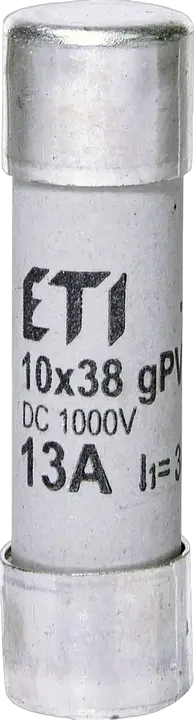

CH10x38 gPV 13A/1000V DC Fuse link
- ETI Code:
- 002625078
- Product group:
- Special purpose fuses
- Product subgroup:
- PV
- Catalogue group:
- Special purpose fuses
- Catalogue subgroup:
- PV Fuse
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 10x38
- Rated current:
- 13 A
- Rated DC voltage:
- 1000 V
- Time-current characteristic:
- gPV
- L/R:
- 2 ms
- Breaking capacity DC:
- 30 kA
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7xIn):
- 1 W
- Power dissipation:
- 2.3 W
- Operating joule integral (A2s):
- 70
- Prearcing joule integral (A2s):
- 21
- Standards:
- IEC 60269-6
22 Logistics
Product
- EAN code for a single product
- 3838400056184
- Net weight of the product
- 8.3 g
- Net width
- 10.2 mm
- Net height
- 38.2 mm
- Net depth
- 10.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895672227
- Basic packaging weight
- 0.088 kg
- Basic Packaging Dimensions Height
- 11 mm
- Basic Packaging Dimensions Width
- 54 mm
- Basic Packaging Dimensions Depth
- 77.5 mm
- Basic packaging volume
- 0.046 dm³
Transport Packaging
- Transport packaging quantity
- 500 pcs
- EAN code for a transport packaging
- 3838895672234
- Transport packaging weight
- 4.481 kg
- Transport Packaging Dimensions Height
- 107 mm
- Transport Packaging Dimensions Width
- 225 mm
- Transport Packaging Dimensions Depth
- 165 mm
- Transport packaging volume
- 3.972 dm³
- Pallet quantity
- 85,000 pcs
- Customs tariff
- 85361050
8 ETIM
- Voltage type
- DC
- Model
- Ceramic fuse
- Size
- 10x38 mm
- Power loss at rated current
- 2.3 W
- Breaking capacity
- 30 kA
- Rated voltage
- 1,000 V
- Rated current
- 13 A
- Utilization category
- gPV (photovoltaic protection)
