003901037

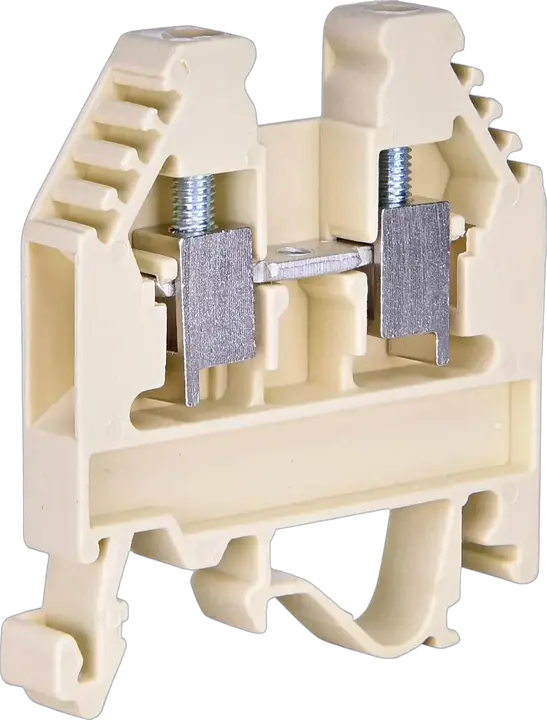

VS 4 PA Line-up terminal
- ETI Code:
- 003901037
- Rated AC voltage:
- 660 V
- Rated DC voltage:
- 660 V
- Catalogue group:
- SM Line-up terminals
- Type of installation:
- DIN rail 35 mm
- Type description:
- SM Line-up terminals
- Level:
- Single
- Color:
- Beige
- Rated cross section:
- 4 mm²
- Max. current with rated cross-section:
- 32 mm²
- Connectable conductor cross section solid-core:
- 3-6 mm²
- Cross connection:
- ✓
- End section needed:
- ✓
- Function:
- Line-up terminal VS
3 Documents
9 Logistics
Product
- EAN code for a single product
- 3838400080653
- Net weight of the product
- 8.82 g
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3831012324474
- Transport packaging weight
- 0.882 kg
- Transport packaging volume
- 1.44 dm³
- Pallet quantity
- 90,700 pcs
- Customs tariff
- 85369010
13 ETIM
- Width
- 6 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 32 A
- Mounting method
- DIN rail (top hat rail) 35 mm
- Type of electrical connection 1
- Clip connection
- Closing plate required
- ✓
- Rated voltage
- 660 V
- Colour
- Beige
- Height
- 44 mm
- Connectable conductor cross section solid-core(Min)
- 1.5 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Min)
- 1.5 mm²
- Connectable conductor cross section solid-core(Max)
- 6 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Max)
- 4 mm²
ETIM Classification – Version 9.0
