003901302

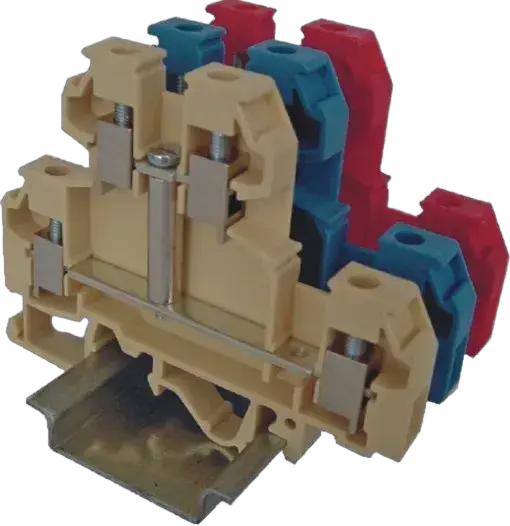

VS 4 NAI + Line-up terminal
- ETI Code:
- 003901302
- Rated AC voltage:
- 440 V
- Rated DC voltage:
- 440 V
- Catalogue group:
- SM Line-up terminals
- Type of installation:
- DIN rail 35 mm
- Type description:
- SM Line-up terminals
- Level:
- Double
- Rated cross section:
- 4 mm²
- Max. current with rated cross-section:
- 32 mm²
- Connectable conductor cross section solid-core:
- 3-6 mm²
- Cross connection:
- ✓
- End section needed:
- ✓
- Function:
- Double level line-up terminal VS NAI
3 Documents
12 Logistics
Product
- EAN code for a single product
- 3838400082176
- Net weight of the product
- 0.021 kg
- Net width
- 6 mm
- Net height
- 54.5 mm
- Net depth
- 69.5 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3831012325396
- Transport packaging weight
- 1.044 kg
- Transport packaging volume
- 1.518 dm³
- Pallet quantity
- 38,300 pcs
- Customs tariff
- 85369010
14 ETIM
- Width
- 6 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 32 A
- Mounting method
- DIN rail (top hat rail) 35 mm
- Basic colour
- Red
- Number of potentials
- 1
- Type of electrical connection 1
- Clip connection
- Closing plate required
- ✓
- Rated voltage
- 440 V
- Height
- 54.5 mm
- Connectable conductor cross section solid-core(Min)
- 0.3 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Min)
- 0.3 mm²
- Connectable conductor cross section solid-core(Max)
- 6 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Max)
- 4 mm²
ETIM Classification – Version 9.0
