003901620

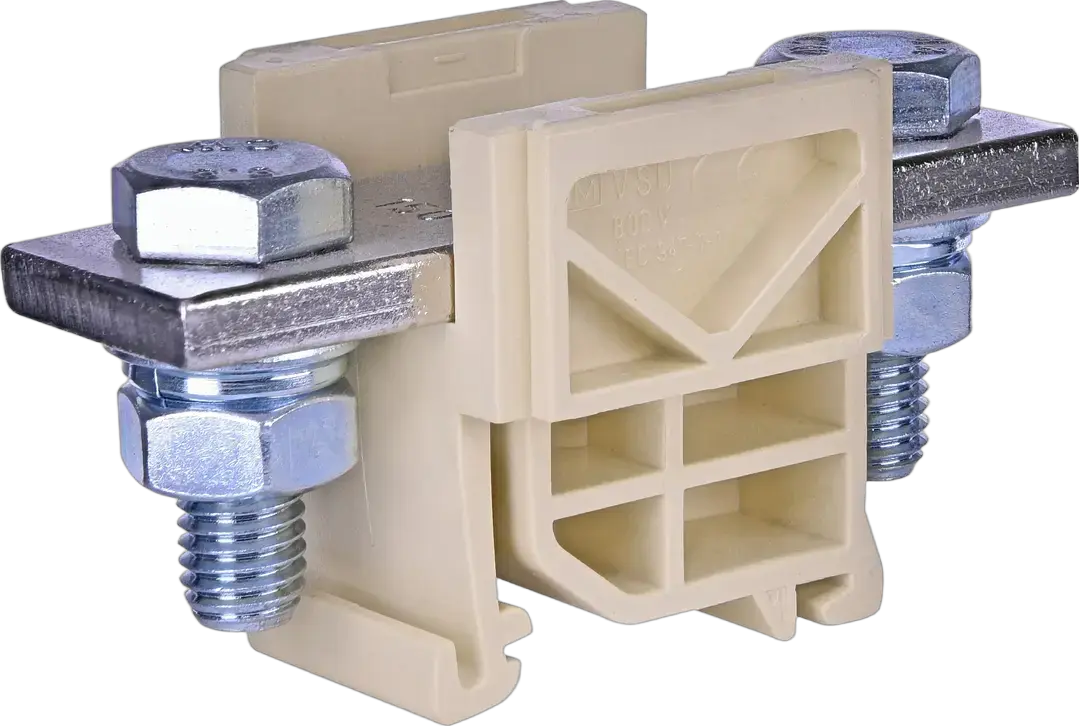

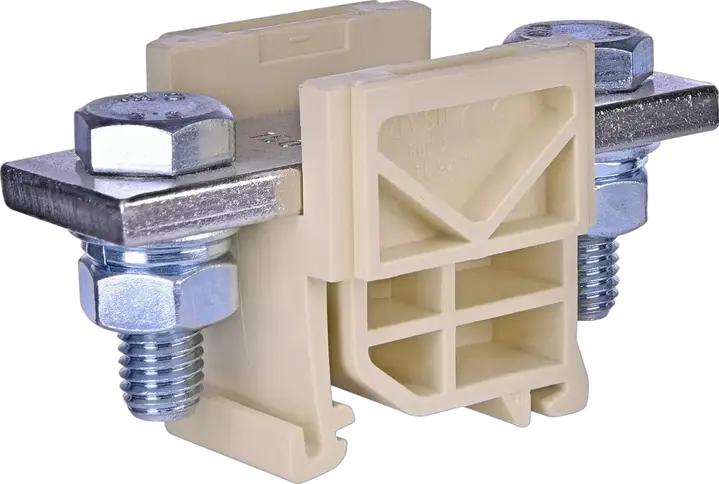

VSU 150 Line-up terminal
- ETI Code:
- 003901620
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1000 V
- Catalogue group:
- SM Line-up terminals
- Type of installation:
- DIN rail 35 mm
- Type description:
- SM Line-up terminals
- Level:
- Single
- Color:
- Beige
- Rated cross section:
- 150 mm²
- Max. current with rated cross-section:
- 309 mm²
- Connectable conductor cross section solid-core:
- 150 mm²
- Cross connection:
- ✗
- End section needed:
- ✗
- Function:
- High current line-up terminal VSU
3 Documents
12 Logistics
Product
- Net weight of the product
- 0.22 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895800460
- Basic packaging weight
- 1 kg
- Basic packaging volume
- 1 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3831012300324
- Transport packaging weight
- 2.2 kg
- Transport packaging volume
- 2.4 dm³
- Pallet quantity
- 3,640 pcs
- Customs tariff
- 85369010
10 ETIM
- Width
- 42 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 309 A
- Mounting method
- DIN rail (top hat rail) 35 mm
- Type of electrical connection 1
- Screw connection
- Rated voltage
- 1,000 V
- Colour
- Beige
- Height
- 48 mm
- Connectable conductor cross section solid-core(Min)
- 2.5 mm²
- Connectable conductor cross section solid-core(Max)
- 150 mm²
ETIM Classification – Version 9.0
