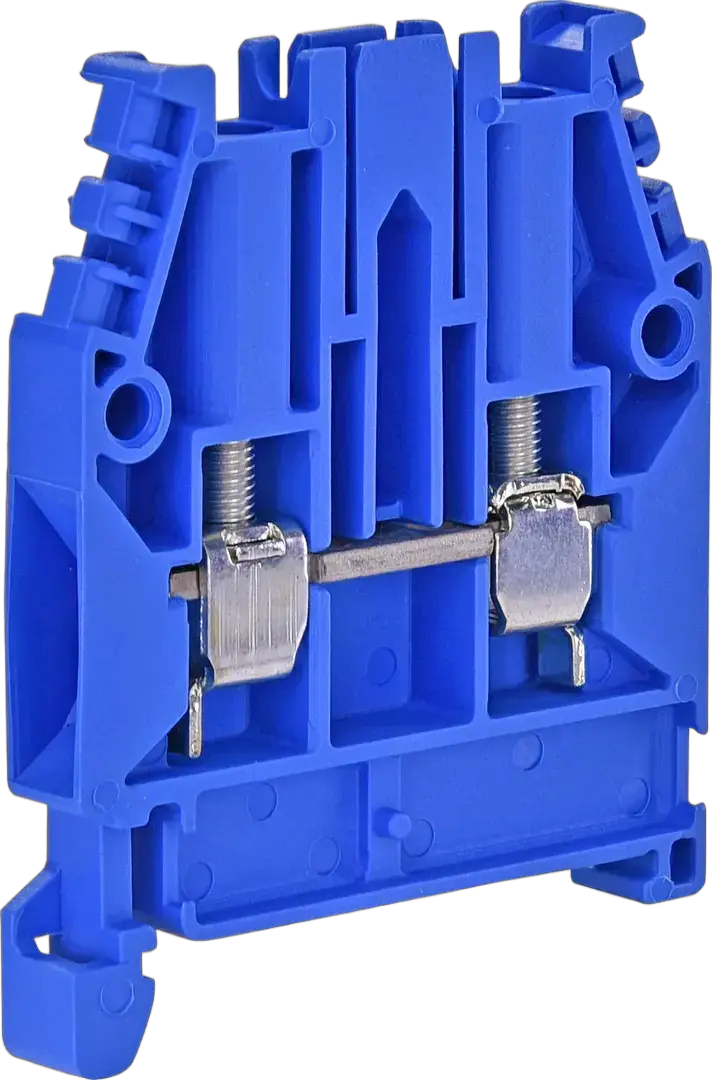

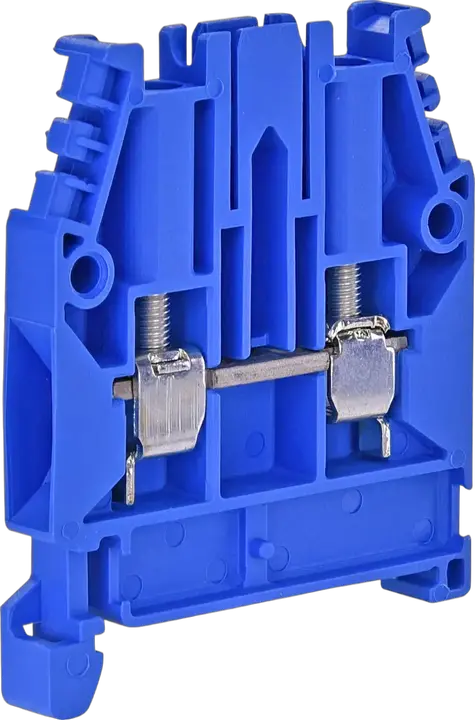

ESC-CBC.4B Neutral terminal

ETI Code:: 003903045
Rated AC voltage:: 1000 V
Rated DC voltage:: 1000 V
Catalogue group:: ES Screw Type Terminal Blocks
Type of installation:: DIN rail 35 mm
Type description:: ES Screw Type Terminal Blocks
Level:: Single
Color:: Blue
Rated cross section:: 4 mm²
Rated impulse withstand voltage Uimp:: 12 kV
Max. current with rated cross-section:: 32 mm²
Max. current with max. cross-section:: 45 mm²
Connectable conductor cross section solid-core:: 0.2-6 mm²
Cross connection:: ✓
End section needed:: ✓

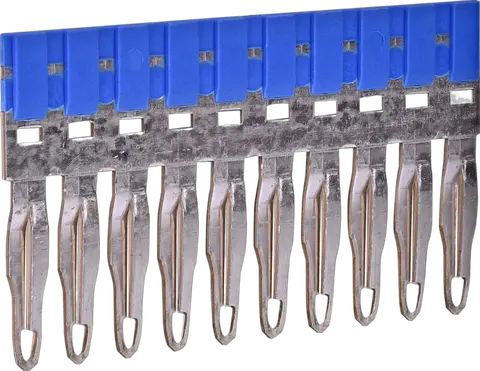

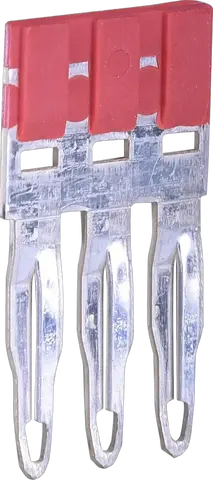

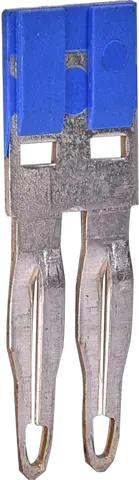

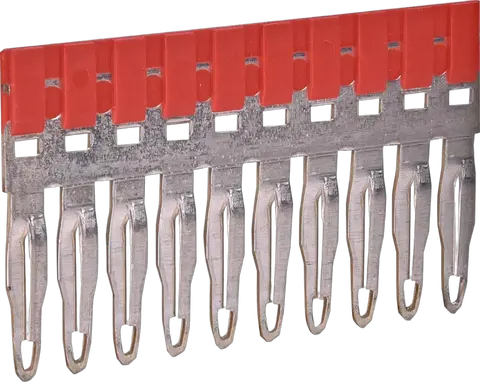

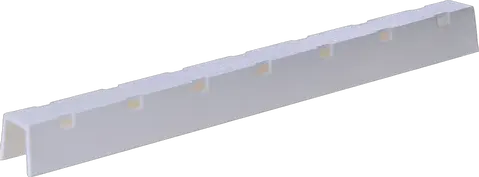

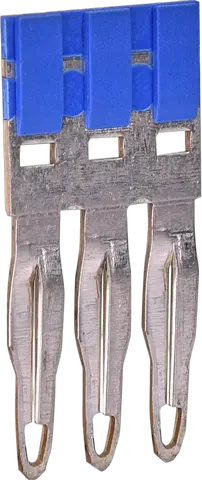

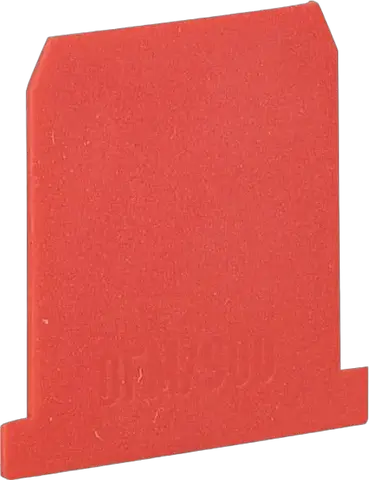

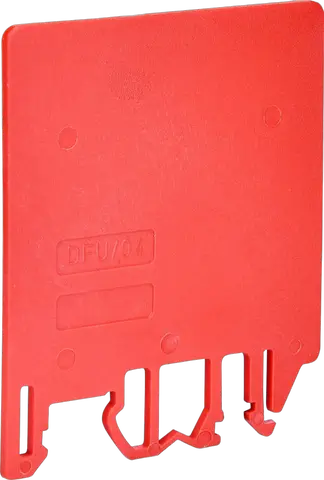

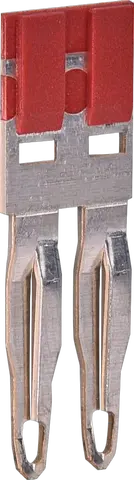

Accessories

Product

EAN code for a single product: 3838895860921
Net weight of the product: 10 g
Net width: 6 mm
Net height: 42.5 mm
Net depth: 50.5 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3838895788393
Transport packaging weight: 0.966 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1.98 dm³
Pallet quantity: 45,000 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 45 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: ✓
Type of electrical connection 2: Screw connection
Rated voltage: 1,000 V
Colour: Blue
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0.2 mm²
Connectable conductor cross section multi-wired(Min): 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0.2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4 mm²
