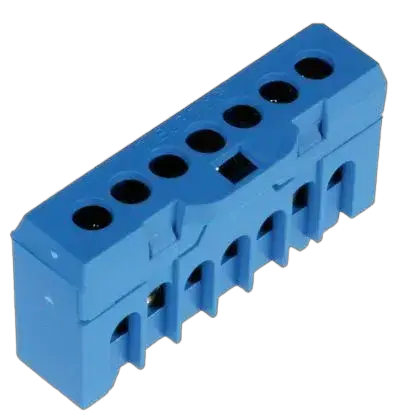

ESC-QBLOK7001 Distribution block

ETI Code:: 003903204
Rated AC voltage:: 500 V
Rated DC voltage:: 500 V
Catalogue group:: ES Screw Type Terminal Blocks
Type of installation:: DIN rail 35 mm
Type description:: ES Screw Type Terminal Blocks
Level:: Single
Color:: Blue
Rated cross section:: 10 mm²
Max. current with rated cross-section:: 63 mm²
Max. current with max. cross-section:: 63 mm²
Connectable conductor cross section solid-core:: 16 mm²
Cross connection:: ✗
End section needed:: ✗
Function:: Equipotential distribution terminal boards

Product

EAN code for a single product: 3838895862772
Net weight of the product: 0.045 kg
Net width: 53 mm
Net height: 31.3 mm
Net depth: 13 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895797685
Transport packaging weight: 0.32 kg
Transport Packaging Dimensions Height: 40 mm
Transport Packaging Dimensions Width: 134 mm
Transport Packaging Dimensions Depth: 116 mm
Transport packaging volume: 0.622 dm³
Pallet quantity: 12,500 pcs
Customs tariff: 85369010

Width: 16 mm
Material insulation body: Thermoplastic
Rated current In: 63 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of electrical connection 2: Screw connection
Rated voltage: 500 V
Colour: Blue
Height: 33 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1.5 mm²
Connectable conductor cross section multi-wired(Min): 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1.5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²
