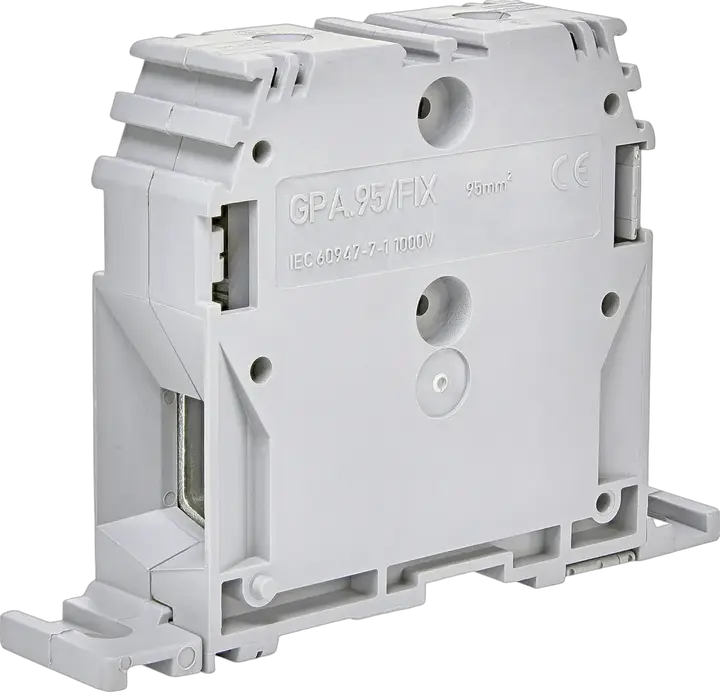

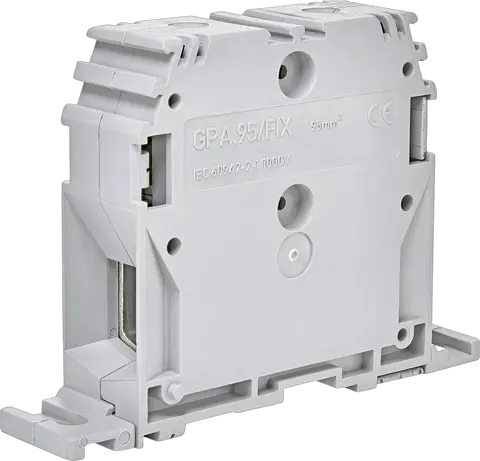

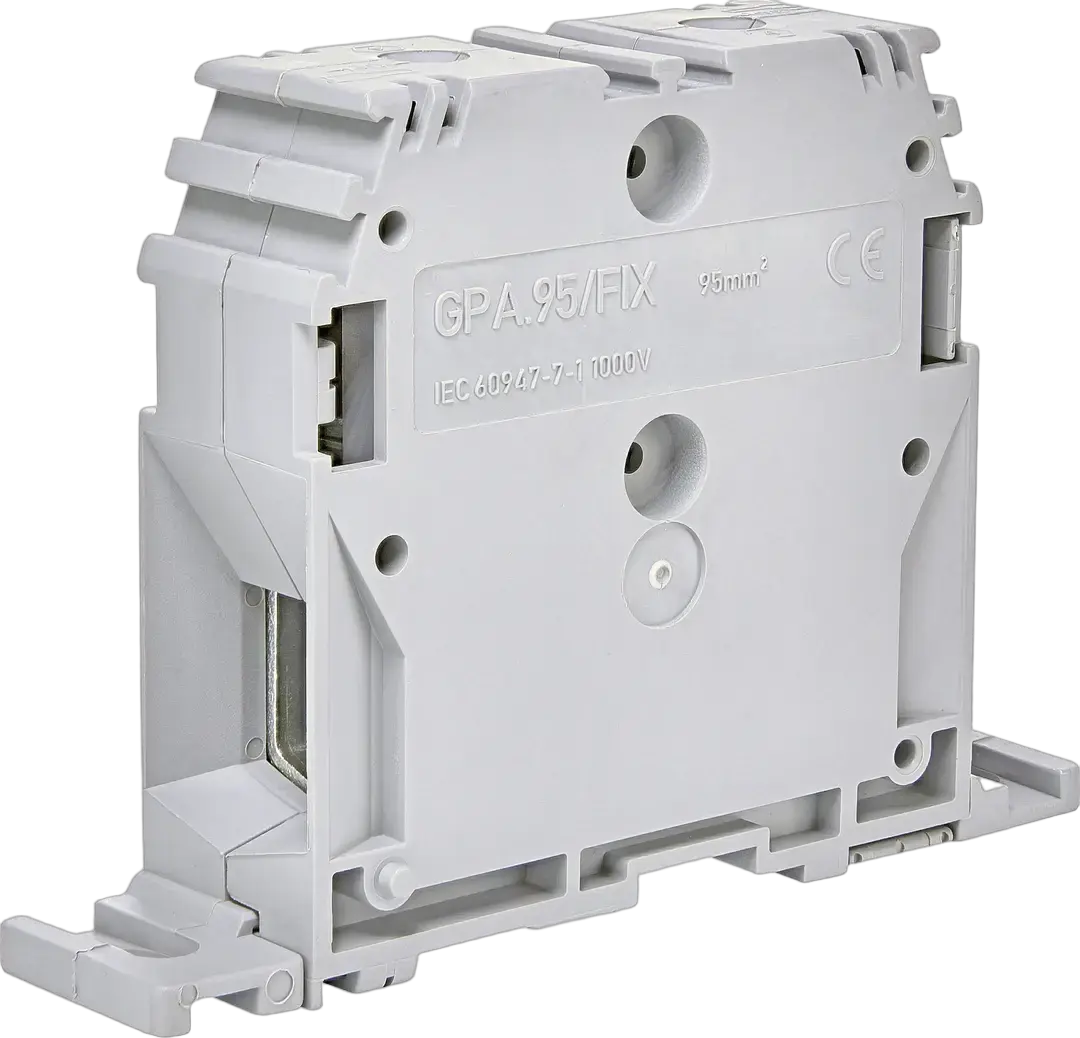

ESC-GPA.95/FIX Line-up terminal

ETI Code:: 003903212
Rated AC voltage:: 600 V
Rated DC voltage:: 600 V
Catalogue group:: ES Screw Type Terminal Blocks
Type of installation:: Base plate mounting
Type description:: ES Screw Type Terminal Blocks
Level:: Single
Color:: Grey
Rated cross section:: 95 mm²
Rated impulse withstand voltage Uimp:: 12 kV
Max. current with rated cross-section:: 232 mm²
Connectable conductor cross section solid-core:: 10-120 mm²
Cross connection:: ✗
End section needed:: ✗

Accessories

Product

EAN code for a single product: 3838895860402
Net weight of the product: 0.205 kg
Net width: 30 mm
Net height: 111 mm
Net depth: 81.62 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895830603
Transport packaging weight: 2.162 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 155 mm
Transport packaging volume: 4.367 dm³
Pallet quantity: 1,680 pcs
Customs tariff: 85369010

Width: 26 mm
Material insulation body: Thermoplastic
Rated current In: 232 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1,000 V
Colour: Grey
Height: 91 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 10 mm²
Connectable conductor cross section multi-wired(Min): 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 120 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 95 mm²
Connectable conductor cross section multi-wired(Max): 120 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 95 mm²
