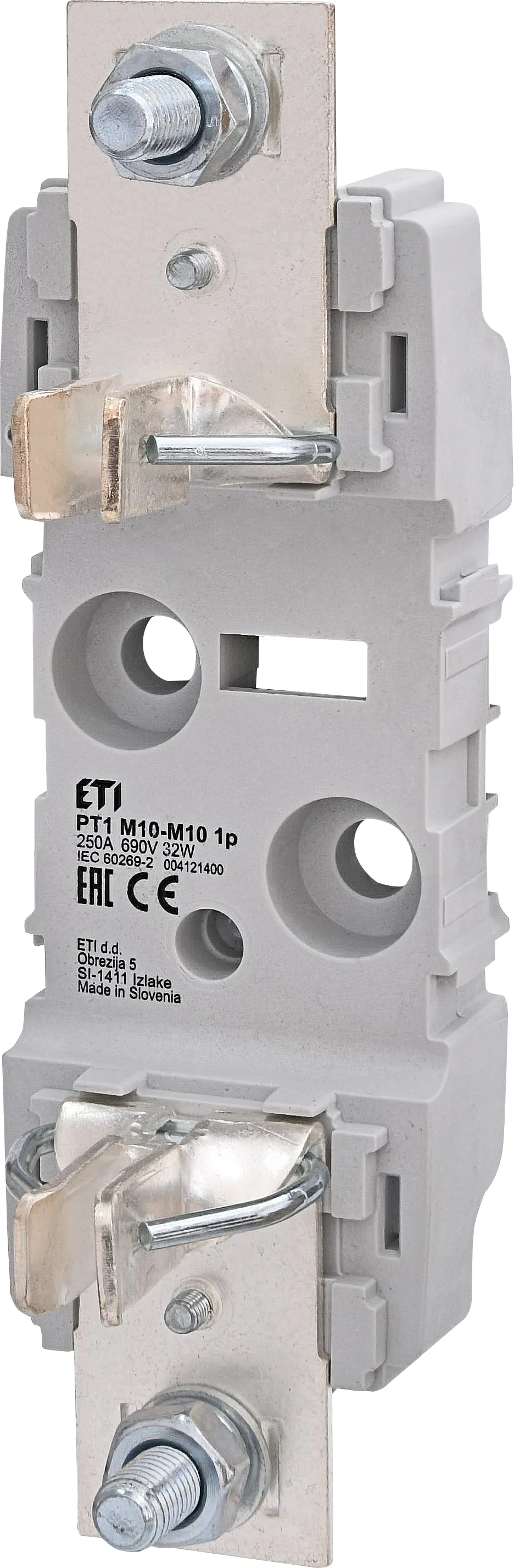

Fuse - base PT 1 M10-M10 1p 004121400
Specifications
- ETI Code:
- 004121400
- Description:
- PT 1 M10-M10 1p
- Class name:
- Fuse - base
- Product group:
- LV-fuse base
- Size:
- NH1
- Number of poles:
- 1
- Rated current (A):
- 250
- Rated AC voltage (V):
- 690
- Breaking capacity AC (kA):
- 120
- Rated Frequency (Hz):
- 40-60
- Overvoltage Category:
- III
- Mounting:
- Screw-on
- Standards:
- IEC 60269-2
- Ambient temperature (°C):
- -25... 55°C
- Conventional free air thermal current with fuse links (A):
- 250A
- Conventional free air thermal current with solid links (A):
- 320A
- Max. permissable power dissipation per fuse link (W):
- 32
- Rated operating mode:
- uninterrupted
- Pollution degree:
- 3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400040190
- Net weight of the product
- 0.401 kg
- Customs tariff
- 85389099
- logis_net_width
- 60 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 83 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895777335
- Basic packaging weight
- 1.202 kg
Transport packaging
- Transport packaging quantity
- 18
- EAN code for a transport packaging
- 3838895777342
- Transport packaging weight
- 7.5 kg
- Pallet quantity
- 432
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH1
- Number of poles
- 1
- Rated current
- 250A
- Bus-mounting type
- Yes
