004122036

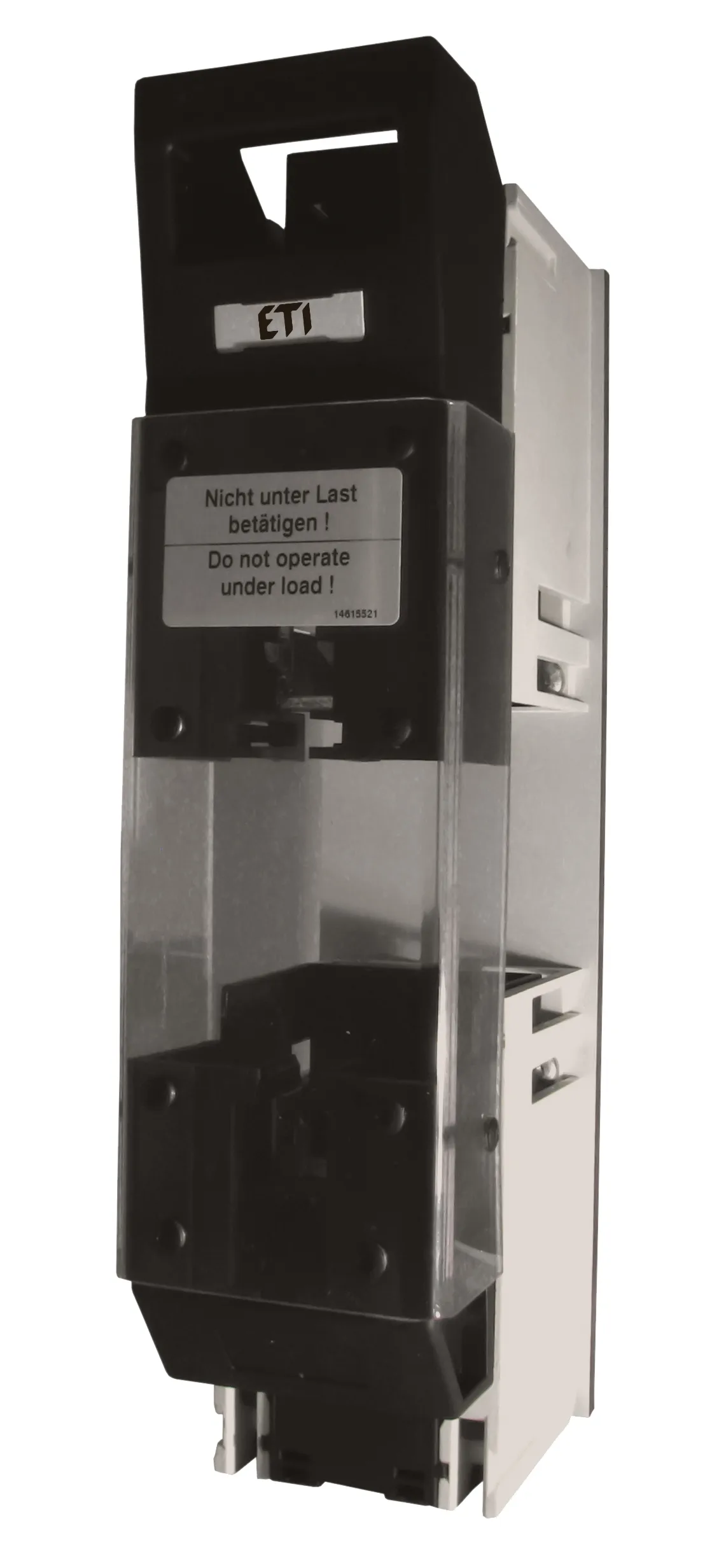

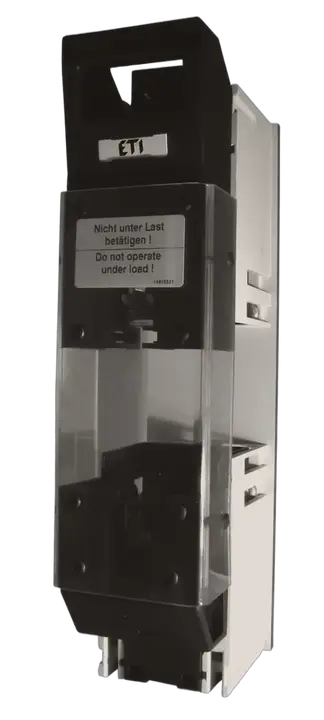

TL1-1/9/1200V Fuse switch disconnector
- ETI Code:
- 004122036
- Size:
- NH1XL
- Rated current:
- 250 A
- Number of poles:
- 1
- Rated AC voltage:
- 1200 V
- Rated DC voltage:
- 1000 V
14 Logistics
Product
- Net weight of the product
- 1.448 kg
- Net width
- 76.6 mm
- Net height
- 307.9 mm
- Net depth
- 125 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895601432
- Transport packaging weight
- 1.395 kg
- Transport Packaging Dimensions Height
- 315 mm
- Transport Packaging Dimensions Width
- 165 mm
- Transport Packaging Dimensions Depth
- 77 mm
- Transport packaging volume
- 4.002 dm³
- Pallet quantity
- 168 pcs
- Customs tariff
- 85365080
8 ETIM
- Max. rated operation voltage Ue AC
- 1,200 V
- Rated permanent current Iu
- 160 A
- Suitable for fuses
- NH1
- Type of control element
- Cover grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 1
- Version as main switch
- ✓
ETIM Classification – Version 9.0
