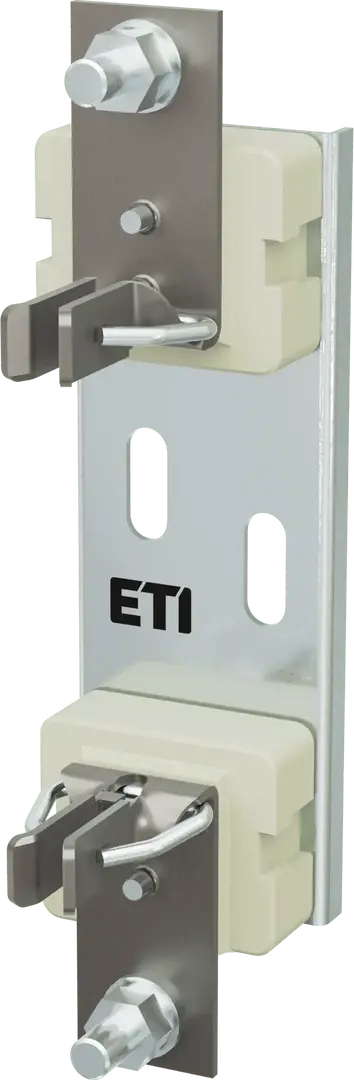

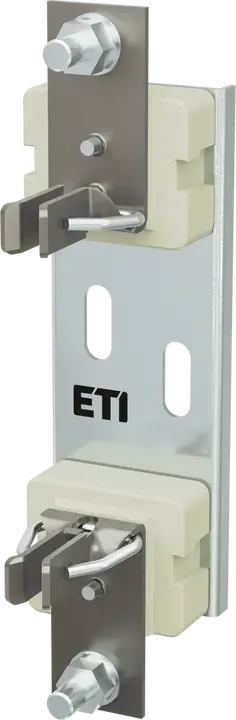

Fuse - base PK 2-100 M10-M10 1p 1000V 004123401
Specifications
- ETI Code:
- 004123401
- Description:
- PK 2-100 M10-M10 1p 1000V
- Class name:
- Fuse - base
- Rated current (A):
- 400A
- Number of poles:
- 1
- Rated Frequency (Hz):
- 40Hz/60Hz
- Rated AC voltage (V):
- 1000V
- Rated DC voltage (V):
- 1000V
- Breaking capacity AC (kA):
- 200kA
- Overvoltage Category:
- III
- Product group:
- LV-fuse base
- Ambient temperature (°C):
- -25°C/55°C
- Conventional free air thermal current with fuse links (A):
- 400A
- Conventional free air thermal current with solid links (A):
- 500A
- Rated operating mode:
- uninterrupted
- Pollution degree:
- 3
- Max. permissable power dissipation per fuse link (W):
- 45W
- Standards:
- IEC60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400142122
- Net weight of the product
- 0.878 kg
- Customs tariff
- 85389099
- logis_net_width
- 65 mm
- logis_net_height
- 245 mm
- logis_net_depth
- 89 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895765035
- Basic packaging weight
- 0.958 kg
Transport packaging
- Transport packaging quantity
- 8
- EAN code for a transport packaging
- 3838895765042
- Transport packaging weight
- 8.214 kg
- Pallet quantity
- 144
ETIM Clasification
- Classification
- EC001660
- Class name
- Accessories for Low Voltage HRC fuse bases
- Construction size
- Other
Tags
Accessories 21
>
>
0
PK 2-100 M10-M10 1p 1000V
