004222520

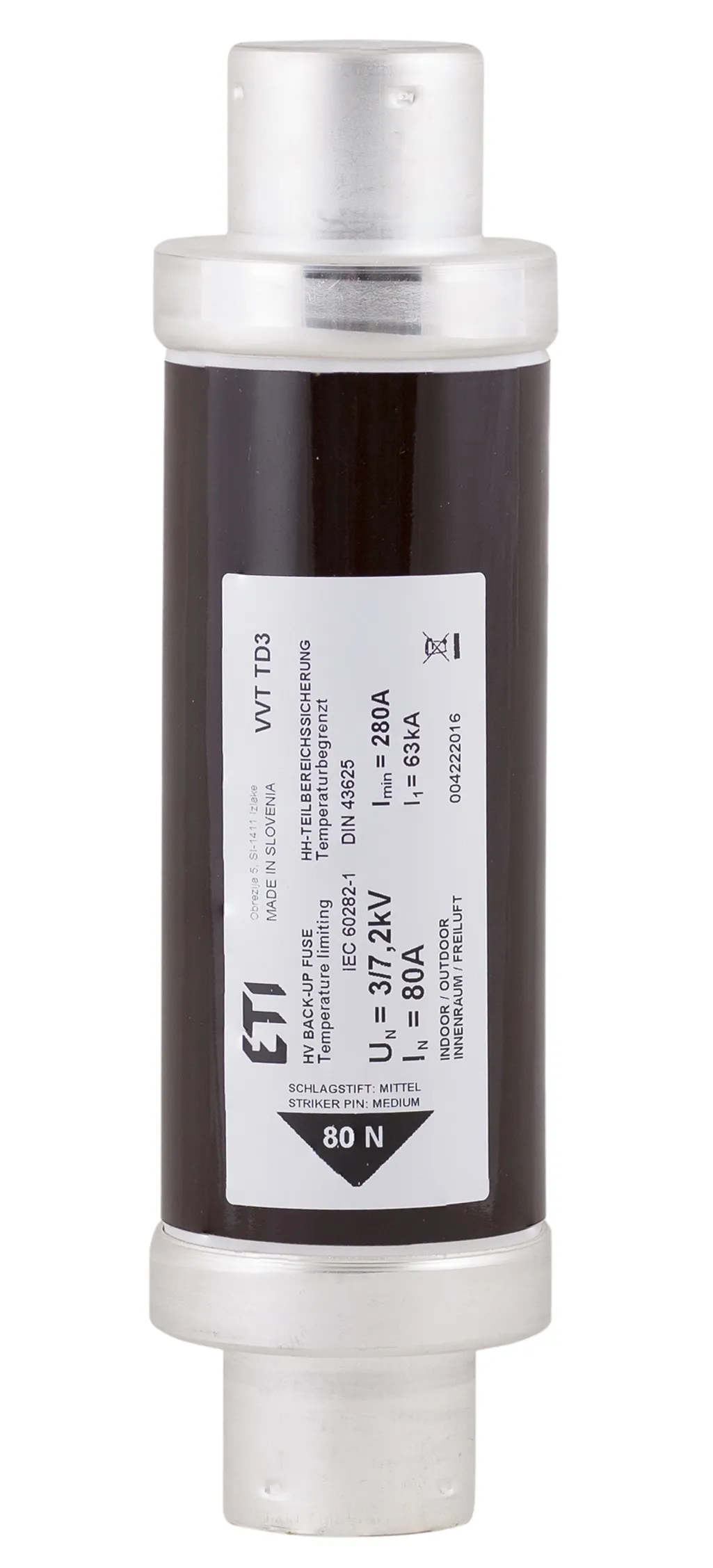

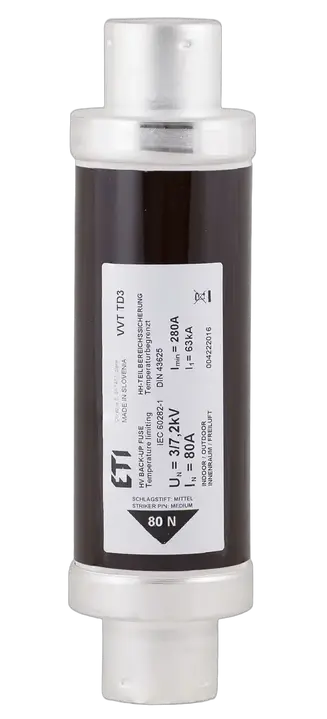

VVT-D3 7,2kV/200A 292 Fuse link
- ETI Code:
- 004222520
- Type description:
- NEW VVT-D 80N Thermo striker
- Fuse type:
- NEW VVT-D 80N Thermo striker
- Rated AC voltage:
- 7200 V
- Size:
- 292
- Rated current:
- 200 A
- Indicator:
- Temperature limiter, 80N striker force
- Breaking capacity AC:
- 63 kA
- Rated minimum breaking current:
- 1,000 A
- Cold resistance:
- 2.2 mΩ
- Power dissipation:
- 155 W
4 Documents
15 Logistics
Product
- EAN code for a single product
- 3838895916888
- Net weight of the product
- 3.8 kg
- Net width
- 86.6 mm
- Net height
- 358 mm
- Net depth
- 86.6 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 3 pcs
- EAN code for a transport packaging
- 3838895916895
- Transport packaging weight
- 11.81 kg
- Transport Packaging Dimensions Height
- 0.12 m
- Transport Packaging Dimensions Width
- 0.41 m
- Transport Packaging Dimensions Depth
- 0.35 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 90 pcs
- Customs tariff
- 85351000
14 ETIM
- Performance category according to IEC 60282-1
- Back-up
- Voltage type
- AC
- Application
- Other
- With striker
- ✓
- Installation technique
- Air
- Standard
- IEC
- Length
- 292 mm
- Breaking capacity
- 63 kA
- Diameter
- 85 mm
- Rated voltage
- 7.2 kV
- Rated current
- 200 A
- Utilization category
- Other
- Rated frequency(Min)
- 45 Hz
- Rated frequency(Max)
- 60 Hz
ETIM Classification – Version 9.0
3 Diagrams
3 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
