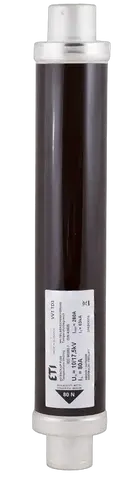

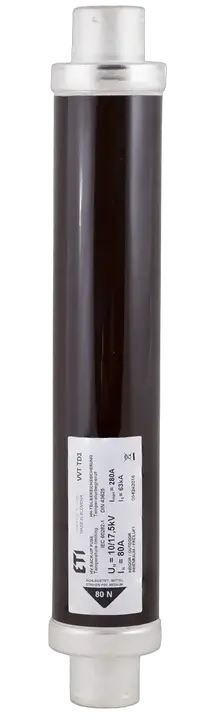

Fuse link VVA3 17,5kV/4A 004241104

Specifications

ETI Code:
004241104
Description:
VVA3 17,5kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
900
Rated current (A):
4
Type:
NEW VVA without striker
Size:
367
Characteristics:
Other
Rated AC voltage (V):
17500
Indicator:
Without
Breaking capacity AC (kA):
63
Power dissipation (W):
17
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895912354
Net weight of the product
2 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895912354
Basic packaging weight
2 kg
Basic packaging volume
6.99

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895912361
Transport packaging weight
6.7 kg
Transport packaging volume
20.98
Pallet quantity
108
Pallet volume
755.28
Classification
EC003507
Class name
Medium-/high voltage fuse
Application
Other
Breaking capacity
63kA
Diameter
53mm
Installation technique
Air
Length
367mm
Performance category according to IEC 60282-1
Back-up
Rated current
4A
Rated frequency
45…60Hz
Rated voltage
17,5kV
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
