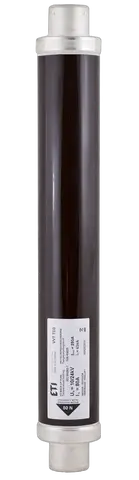

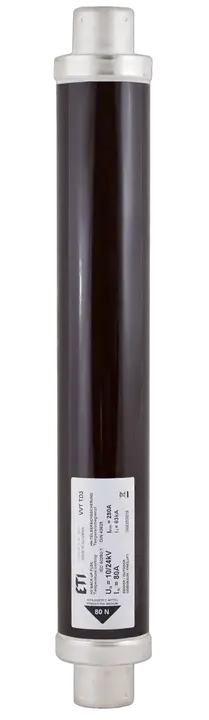

Fuse link VVA3 24kV/16A 004251108

Specifications

ETI Code:
004251108
Description:
VVA3 24kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
125
Rated current (A):
16
Type:
NEW VVA without striker
Size:
442
Characteristics:
Other
Rated AC voltage (V):
24000
Indicator:
Without
Breaking capacity AC (kA):
63
Power dissipation (W):
42
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895912811
Net weight of the product
2.4 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895912811
Basic packaging weight
2.4 kg
Basic packaging volume
4.08

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895912828
Transport packaging weight
7.67 kg
Transport packaging volume
12.26
Pallet quantity
108
Pallet volume
441.36
Classification
EC003507
Class name
Medium-/high voltage fuse
Application
Other
Breaking capacity
63kA
Diameter
53mm
Installation technique
Air
Length
442mm
Nominal rated current
16A
Nominal rated frequency
45…60Hz
Nominal rated voltage
24kV
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
